Toyota Winch Performance

WARN XD9000I SELF-RECOVERY WINCH, POWDERCOATED ARGENT -- 12V, 4.6 h.p., 85 lbs.; 9,000 lbs. rated line pull; 125 ft. wire rope length; 156:1 gear ratio with a 3-stage planetary gear train; With a roller fairlead; Features an integrated control pack and all metal housing that protects the winch's electrical components; Contains a sliding ring gear clutch and automatic direct drive cone brake; Has the ability to run cool with low amp draw for long winching cycles; For use with trucks and SUVs.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

WARN HEAVYWEIGHT SERIES 16.5TI THERMOMETRIC WINCH, POWDERCOATED -- 12V, 4.6 hp, 138 lbs.; 16,500 lbs. rated line pull; 90 ft. wire rope long with a diameter of 0.44 in.; 315:1 gear ratio with a 3-stage planetary geartrain; Contains a rotating ring gear clutch and automatic direct drive cone brake; With a roller fairlead; Hand-held control with thermometric indicator; Has a high-gloss powdercoat over primer overcoating finish and a new aluminum solenoid housing cover; Features the full diagnostic ability of Warn Thermometric technology and a new, more efficient design that delivers faster line speeds and lower amp draw; For use of heavier trucks and SUVs.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

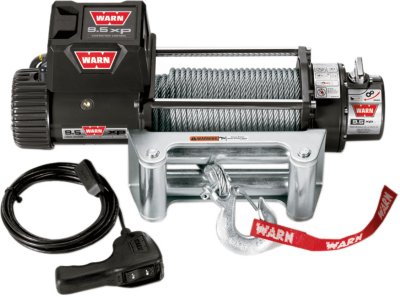

WARN ULTIMATE PERFORMANCE SERIES 9.5XP SELF-RECOVERY WINCH -- 12V DC; 9,500 lbs. rated line pull; 12V 6 hp high output parallel series sound motor; Contactor electrical controls; 3-stage planetary geartrain; 156:1 gear ratio; Sliding ring gear freespooling clutch; Automatic direct drive cone brake; 100 ft, 0.31 in. diameter wire rope; Roller fairlead; 2.5 in. drum diameter; 9 in. drum length; Includes remote switch with 12 ft. lead; CE certified; Features extreme duty winch sealing that enables superior water resistance; Delivers the fastest line speed under load and an extra long duty cycle of any WARN self-recovery winch; Designed with an exclusive brake design that provides superior operator control when winching, extended-duty control pack that delivers long duty-cycle to help you tackle the most demanding pulls, and remote-mount, next-generation control box that allows for various mounting options; Has high gloss, chip-resistant powdercoat finish to give superior corrosion resistance.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

WARN ULTIMATE PERFORMANCE SERIES POWERPLANT DUAL FORCE HP WINCH AND AIR COMPRESSOR -- 9,500 lbs. single-line rated line pull; 12V 4.6 hp Gen II series wound motor with thermal protection shutoff switch; Contactor electrical controls; 3-stage planetary geartrain; 156:1 gear ratio; Sliding ring gear freespooling clutch; Integrated direct-drive cone brake; 2.5 in. drum diameter; 9 in. drum length; 0.5 gallon tank air reservoir; 12 CFM at 0 psi, 5 CFM at 90 psi high air flow rating; 100 psi maximum air pressure; Includes next-generation remote control with thermometric, 12 in. nylon hose with quick-disconnect, and basic air fittings and couplings; With roller fairlead and air pressure switch; Air compressor delivers enough air to operate a variety of air tools or quickly inflate a raft.

Fits the following 2000-2002 Toyota Tundra submodels:

• 2000-2002: All Submodels; All Engines;

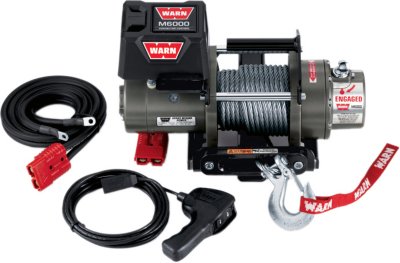

WARN PREMIUM SERIES M6000 SDP SHORT-DRUM PORTABLE WINCH -- 6,000 lbs. single-line rated line pull; 12V 4.8 hp series wound motor; 3-stage planetary geartrain; 156:1 gear ratio; Sliding ring gear freespooling clutch; Automatic direct drive cone brake; 2.5 in. drum diameter; 5 in. drum length; 50 ft., 0.31 in. diameter wire rope; Hawse fairlead; Includes remote control with 12 ft. lead; Comes complete with handle/mounting system for a Class III 2 in. receivers and power lead with Quick Connect plug for the front of the vehicle; Provides plenty of pulling power, can be mounted single-handedly, and stores in a snap; Perfect companion when you take your rig off-road, hunting, fishing, or skiing; Front receiver and rear power cables sold separately.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

WARN PREMIUM SERIES XD9000I MULTI-MOUNT PORTABLE WINCH, POWDERCOATED ARGENT -- Includes winch, remote, carrier, and 7.5 in. power lead with quick connect plug for front of vehicle; 12 V, 4.6 h.p., 104 lbs.; 9,000 lbs. rated line pull; 125 ft. wire rope long; 156:1 gear ratio with a 3-stage planetary geartrain; Contains a sliding ring gear clutch and automatic direct drive cone brake; With a hawse fairlead; Hand-held control; Has an argent powdercoat finish; Plugs into any standard 2 in. Class III receiver hitch and gives you the ability to move the winch from the front or back of the rig; A good choice for full-size rigs and heavier recovery situations; With Warn's limited lifetime warranty on mechanical components and limited 1-year warranty on electrical components.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

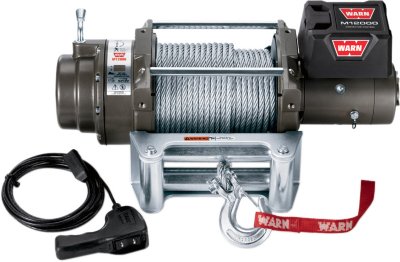

WARN HEAVYWEIGHT SERIES M12000 SELF-RECOVERY WINCH -- 12,000 lbs. single-line rated line pull; 24V 2.5 hp series wound motor; Contactor electrical controls; 3-stage planetary geartrain; 261:1 gear ratio; Rotating ring gear freespooling clutch; Automatic direct drive cone brake; 3.5 in. drum diameter; 8.2 in. drum length; 125 ft., 0.38 in. diameter wire rope; Roller fairlead; Includes remote switch with 12 ft. lead; Features a large frame to handle heavier winch loads and a high-speed motor to provide fast line speed and strong pulls; Has a low profile design and chip-resistant powdercoated finish; Designed with remote-mount control box that allows for various mounting options.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

WARN HEAVYWEIGHT SERIES M12000 WINCH -- 12V DC; 12000 lbs. pulling capacity; Includes 125 ft. length x 0.38 in. diameter wire rope, hook, remote control on 12 ft. lead, clutch, roller fairlead and battery cables; Great for the largest off-road vehicles; Delivers plenty of power, torque and quick no-load retrieval, up to 30 feet per minute; With a low-profile design for unobtrusive mounting anywhere on the vehicle; Powered by a 4.6 HP Series wound motor and a 3-stage planetary gear train for smooth, efficient operation.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

WARN PREMIUM SERIES XD9000 SELF-RECOVERY WINCH -- 9,000 lbs. single-line rated line pull; 12V 4.6 hp series wound motor; Contactor electrical controls; 3-stage planetary geartrain; 156:1 gear ratio; Sliding ring gear freespooling clutch; Automatic direct drive cone brake; 2.5 in. drum diameter; 9 in. drum length; 100 ft., 0.31 in. diameter; Roller fairlead; Includes remote switch with 12 ft. lead; Features an exclusive brake design that provides superior control while winching and high-speed motor that provides fast line speed and strong pulls; Designed with a separate control box that allows for a wide range of mounting options; Has a low profile design and chip-resistant powdercoated finish.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

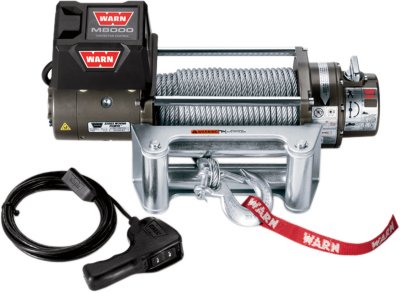

WARN PREMIUM SERIES M8000 WINCH -- 12V DC; 8000 lbs. pulling capacity; Powered by a 4.8 HP Series wound motor and a 3-stage planetary gear train for smooth, efficient operation; With a winch line diameter of 0.31 in. and length of 100 ft.; Includes a remote control with 12 ft. lead; Compact in size, rugged, built to handle off-road situations, and with reliable power that you can count on again and again.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

WARN PREMIUM M8274-50 SELF-RECOVERY WINCH

When it comes to state-of-the-art off-road equipment, Warn Industries is the name you can count on. Warn is known for their meticulously engineered off-road accessories that are intended to improve the functionality of 4WD, ATV, and Utility vehicles. For over 6 decades, Warn ensures that their products are manufactured to comply with automotive industry standards and guarantee each customer that what they have is exactly what they really need!

Equip your off-road vehicle with Warn's fastest winch! The M8274-50 has the fastest retrieval line speed, longest wire rope, and outstanding performance.

Features:

• 8,000 lbs. single-line rated line pull
• Includes roller fairlead, new-design remote control with 12 ft. lead, free spool clutch, and battery cables
• 12V 4.6 hp series wound motor
• Solenoid electrical controls
• Spur gear geartrain
• 134:1 gear ratio
• Automatic disc type brake
• 3.5 in. drum diameter and 8.5 in. drum length
• 150 ft., 0.31 in. diameter wire rope
• 73.4 ft. per minute no-load retrieval line speed
• Automatic disc braking system that delivers smooth operation with superior heat dissipation

Fits the following 2000-2005 Toyota Tundra submodels:

• 2000-2005: All Submodels; All Engines;

WARN PREMIUM SERIES M8000 SELF-RECOVERY WINCH -- 8,000 lbs. single-line rated line pull; 24V 2.1 hp series wound motor; Contactor electrical controls; 3-stage planetary geartrain; 216:1 gear ratio; Sliding ring gear freespooling clutch; Automatic direct drive cone brake; 2.5 in. drum diameter; 9 in. drum length; 100 ft., 0.31 in. diameter wire rope; Roller fairlead; Includes remote switch with 12 ft. lead; Features an exclusive brake design that provides superior control while winching and high-speed motor that provides fast line speed and strong pulls; Designed with a separate control box that allows for a wide range of mounting options; Has a low profile design and chip-resistant powdercoated finish; Delivers classic design, proven performance, and legendary WARN reliability.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

WARN PREMIUM SERIES XD9000 SELF-RECOVERY WINCH -- 9,000 lbs. single-line rated line pull; 24V 2.5 hp series wound motor; Contactor electrical controls; 3-stage planetary geartrain; 156:1 gear ratio; Sliding ring gear freespooling clutch; Automatic direct drive cone brake; 2.5 in. drum diameter; 9 in. drum length; 100 ft., 0.31 in. diameter; Roller fairlead; Includes remote switch with 12 ft. lead; Features an exclusive brake design that provides superior control while winching and high-speed motor that provides fast line speed and strong pulls; Designed with a separate control box that allows for a wide range of mounting options; Has a low profile design and chip-resistant powdercoated finish.

Fits the following 2000-2011 Toyota Tundra submodels:

• 2000-2011: All Submodels; All Engines;

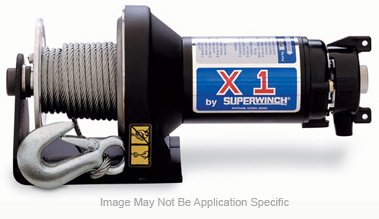

SUPERWINCH X1 SERIES WINCH -- 12V DC, 2000 Lbs Capacity, Small, Light And Fast For Superior Performance, With Power In And Power Out Feature, Circuit Breakers, On The Motor Switching And Hand-Saver Bar, Includes 3/16' x 25' Cable, Battery Cables With Terminals, And Removable Switch, With Manufacturer's Limited One-Year Warranty

Fits the following 1985-2011 Toyota 4Runner submodels:

• 2010-2011: Trail; All Engines;
• 1996-2011: Limited; All Engines;

• 1985-2011: SR5; All Engines;

• 2004-2009: Sport; All Engines;

• 1996-2002: Base; All Engines;

• 1985-1989: DLX; All Engines;

Fits 4 more submodels. (Show all) Show less info

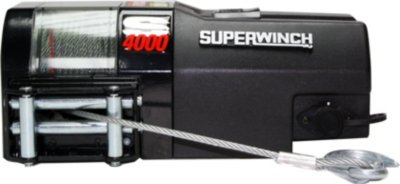

SUPERWINCH S4000 SERIES WINCH -- 12V DC, 4000 Lbs Capacity, With Power In And Power Out Feature, Mechanical And Dynamic Brake, Full-Metal Gear-Train, Freespooling, High Efficiency Low Amp Draw Motor, Mounted Sealed Contractor, Circuit Breaker, Includes Durable Handheld Remote Switch On 30' Lead, 7/32' x 60' Cable, And Roller Fairlead, With Manufacturer's Limited One-Year Warranty

Fits the following 1985-2011 Toyota 4Runner submodels:

• 2010-2011: Trail; All Engines;
• 1996-2011: Limited; All Engines;

• 1985-2011: SR5; All Engines;

• 2004-2009: Sport; All Engines;

• 1996-2002: Base; All Engines;

• 1985-1989: DLX; All Engines;

Fits 4 more submodels. (Show all) Show less info
