Ford E-150 Club Wagon Brake Disc

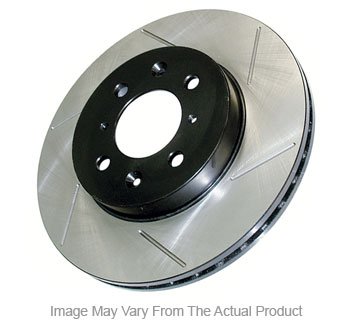

CENTRIC POWER SLOT BRAKE DISC, SLOTTED, VENTED, SOLD INDIVIDUALLY

Improve the stopping power of your truck, SUV, or severe duty vehicle with Centric Power Slot Brake Discs. These entry-level performance upgrades offer superior and reliable braking even under hard driving conditions as they have a special feature called Vac-U-Slots. Vac-U-Slots help keep gas, heat, and dust from building up and inhibiting braking power. In wet conditions, these slots push water off the rotor surface to ensure reliable braking, and since the Vac-U-Slots are milled to the disc's minimum thickness, they also serve as a visual wear indicator.

Specifications:

• 8 lugs

Features:

• Offers consistent braking even under hard driving conditions
• Provides reliable braking under wet conditions
• Delivers superior resistance to cracking due to thermal stress

Fits the following 2004-2005 Ford E-150 Club Wagon submodels:

• 2004-2005: All Submodels; All Engines;

BRAKE DISC AND HUB ASSEMBLY, NATURAL FINISH, VENTED, SOLD INDIVIDUALLY

A high quality, OE replacement brake disc and hub assembly. This REPLACEMENT brake disc and hub assembly is made from premium material for optimum disc wear and manufactured to OE comparable design, fit and specifications for balance and reliability.

Specifications:

• 5 x 5.5 in. bolt pattern
• 11.72 in. outer diameter
• 3.41 in .inner diameter
• 0.5 x 20 in. bolt size
• 0.96 in. minimum thickness
• Non-directional
• With ABS ring

Features and Benefits:

• Vented construction

Fits the following 2003-2003 Ford E-150 Club Wagon submodels:

• 2003-2003: All Submodels; All Engines;

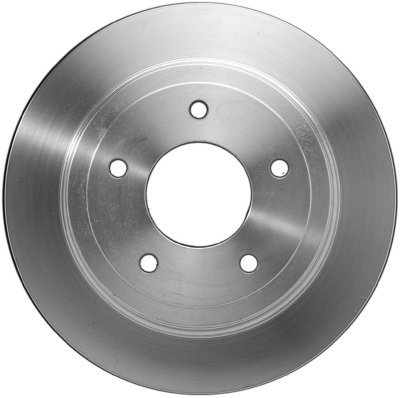

BENDIX GLOBAL BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with the aftermarket brake discs of Bendix Global. These discs are manufactured for quiet and safe ride, and designed for street use with stock calipers.

Specifications:

• 5 x 5.5 in. bolt pattern
• 13.03 in. disc diameter
• 0.8 in. minimum thickness
• 0.86 in. thickness

Features:

• Enhances stopping power
• Reduces noise while maximizing cooling resulting in less wear and more consistent braking

Fits the following 2004-2005 Ford E-150 Club Wagon submodels:

• 2004-2005: All Submodels; All Engines;

POWERSTOP EXTREME PERFORMANCE CROSS-DRILLED BRAKE DISC, SOLD INDIVIDUALLY

Improve your stopping power up to 37 percent with Powerstop Extreme Performance Cross-Drilled Brake Disc. This is engineered with gold-zinc plate to withstand corrosion and to improve braking performance by allowing cool air to flow through. Remarkably good for high-speed halting power, this rotor is ideal for high speed street driving.

Features:

• Constructed from gold zinc dichromate to withstand corrosion
• Improves braking performance
• Ideal for throbbing brakes and trembling steering wheel

Specifications:

• Location - Front; Left
• Rotor Type - HUB
• O.D. - 11.73 in.
• Height - 5.25 in.
• Nominal Thickness - 1.02 in.
• Min. Thickness - 0.96 in.
• Hub Hole Dia. - 3.41 in.
• Bolt Pattern - 5 x 5.5 in.

Get rid of that old and warped brake disc and give your vehicle the stopping power it deserves!

Fits the following 2003-2003 Ford E-150 Club Wagon submodels:

• 2003-2003: All Submodels; All Engines;

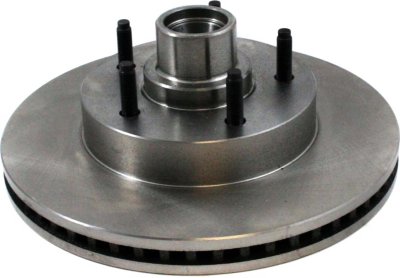

PRONTO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with Pronto OE replacement brake discs. These are manufactured by ISO certified factories to meet OE fit, form, and function and ensure smooth and vibration-free braking. They are engineered to high metallurgical standards for consistent strength, quality, and performance. The discs are given a non-directional swirl finish to eliminate the need for machining prior to installation; and they feature precise hub hole chamfers to ensure a hub centric fit. All in all, you are assured of complete repair when you use Pronto OE replacements.

Specifications:

• 8 x 5.5 in. bolt pattern
• 12.81 in. disc diameter
• ISO certified

Features:

• Designed with multiple vane configurations for suitable heat dissipation and improved performance
• Precision balanced to guarantee smooth vibration-free performance and reduce brake noise
• Non-directional swirl finish does away with machining prior to installation
• Precise hub hole chamfers ensure hub centric fit

Fits the following 2004-2005 Ford E-150 Club Wagon submodels:

• 2004-2005: All Submodels; All Engines;

AC DELCO DURASTOP BRAKE DISC, VENTED, SOLD INDIVIDUALLY

D3EA tested and approved, AC Delco DuraStop brake discs match OE design for heat dispersion. The resulting thermal efficiency, combined with minimized brake shudder, ensures optimum braking performance.

Specifications:

• 5 lugs
• D3EA, ISO/TS16949 certified

Features:

• Reduced brake noise and vibration
• Prolonged brake disc and brake pad life

This high quality brake disc replaces OE number 18028251.

Fits the following 2003-2003 Ford E-150 Club Wagon submodels:

• 2003-2003: All Submodels; All Engines;
• 2003-2003: Chateau; 6 Cyl 4.2L; "GAS, FI, Naturally Aspirated, VIN 2"

• 2003-2003: Chateau; 8 Cyl 4.6L; "GAS, FI, Naturally Aspirated, VIN W"

• 2003-2003: Chateau; 8 Cyl 5.4L; "GAS, FI, Naturally Aspirated, VIN L"

• 2003-2003: XL; 6 Cyl 4.2L; "GAS, FI, Naturally Aspirated, VIN 2"

• 2003-2003: XL; 8 Cyl 4.6L; "GAS, FI, Naturally Aspirated, VIN W"

• 2003-2003: XL; 8 Cyl 5.4L; "GAS, FI, Naturally Aspirated, VIN L"

• 2003-2003: XLT; 6 Cyl 4.2L; "GAS, FI, Naturally Aspirated, VIN 2"

• 2003-2003: XLT; 8 Cyl 4.6L; "GAS, FI, Naturally Aspirated, VIN W"

• 2003-2003: XLT; 8 Cyl 5.4L; "GAS, FI, Naturally Aspirated, VIN L"

Fits 8 more submodels. (Show all) Show less info

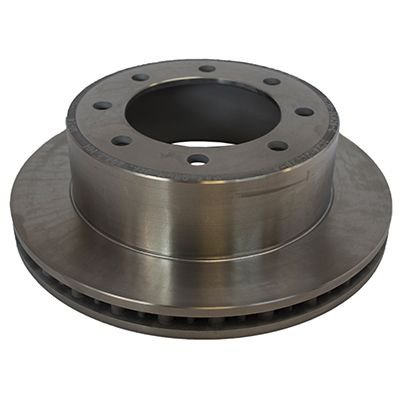

MOTORCRAFT BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with Motorcraft Brake Discs. These high quality discs enhance braking performance, ensure safer stop, and build driver confidence.

Specifications:

• 8 lugs

Features:

• Improves pedal feel
• Reduces brake fade
• Shorter stopping distances
• Increases pad bite

Fits the following 2005-2005 Ford E-150 Club Wagon submodels:

• 2005-2005: All Submodels; All Engines;

PBR Brake Disc

The PBR brake disc is an OE-Quality replacement that is manufactured to the highest quality standards. The PBR brake disc features a special anti-coning design and unique ventilation pattern that minimizes brake shudder, improves thermal efficiency and reduces noise.

• OE-Equivalent and Direct fit Application
• high carbon content disc
• special anti-coning design
• Resistant to vibrations and noise.
• Improved thermal efficiency

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Fits the following 2003-2004 Ford E-150 Club Wagon submodels:

• 2003-2004: Chateau; 8 Cyl 4.6L;
• 2003-2004: Chateau; 8 Cyl 5.4L;

• 2003-2004: XL; 8 Cyl 4.6L;

• 2003-2004: XL; 8 Cyl 5.4L;

• 2003-2004: XLT; 8 Cyl 4.6L;

• 2003-2004: XLT; 8 Cyl 5.4L;

• 2003-2003: Chateau; 6 Cyl 4.2L;

• 2003-2003: XL; 6 Cyl 4.2L;

• 2003-2003: XLT; 6 Cyl 4.2L;

Fits 7 more submodels. (Show all) Show less info
