Honda Passport Brake Disc

EBC ULTIMAX SLOTTED ROTOR (USR) BLACKDASH SERIES BRAKE DISCS, SLOTTED, VENTED, BLACK ZINC, SET OF 2

Enjoy improved sport braking with EBC USR Blackdash Brake Discs. Just like regular slotted discs, these degas pads for cooler braking operation and help remove dirt, brake dust, and water from the brake area. They also promote flat and parallel pad wear for consistent braking performance during the life of the discs and the pads. But what sets Blackdash discs above all other slotted discs is its multi-slot pattern. Unlike regular slots that produce air noise, Blackdash disc slots are narrower in size and are set at a progressive angle, making braking operation incredibly quiet and effective at the same time.

Specifications:

• 6 x 5.5 in. bolt pattern
• 11.02 in. disc diameter

Features:

• Manufactured to OE specifications using high tensile strength G3000 gray cast iron
• Coated with black zinc finish
• Maintains a flat and parallel pad wear and avoids the record grooves or galling common with non-slotted rotors

Professional installation is recommended, but you can install this brake disc yourself with EBC Instructional Video P/N E35DVD083 (sold separately). Never use old brake pads with new discs. For optimal braking performance, match Blackdash discs with EBC Redstuff, Greenstuff, or Yellowstuff brake pads.

Fits the following 1994-2001 Honda Passport submodels:

• 1994-2001: EX; 6 Cyl 3.2L;
• 1994-2001: LX; 6 Cyl 3.2L;

• 1994-1996: DX; 4 Cyl 2.6L;

Fits 1 more submodels. (Show all) Show less info

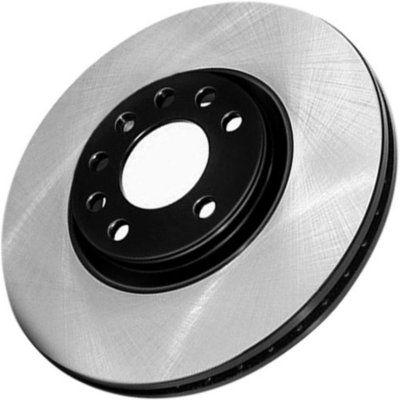

CENTRIC PREMIUM BRAKE DISC, FLOATING TYPE, VENTED, SOLD INDIVIDUALLY

Get the most out of your stock braking system with Centric Premium OE replacement brake discs. These rotors are manufactured using OE specifications and processes under strict QS and ISO quality standards to give you an ever reliable braking performance. Furthermore, they are given machined finishes for smoother and cleaner appearance.

Specifications:

• 6 x 139.7 mm bolt pattern
• 290 mm disc diameter
• 12.5 mm bolt size
• 24.6 mm minimum thickness

Features:

• Manufactured to meet QS and ISO quality system standards
• Utilizes an electrocoating finish that provides long lasting corrosion protection
• Designed to withstand 400 hours of salt water exposure without rusting
• Double disc grinding ensures parallelism, eliminates run out, and provides near perfect disc thickness
• The double disc grinding also leaves a non-directional finish on the friction surface area for more effective pad-disc break in while providing quieter and smoother stops
• Center-split core casting offers proper heat transfer and thermal efficiency for superior braking and safety
• 100 percent fully machined hat delivers better disc balance
• Mill-corrected to a tolerance of less than 2 oz. per inch

Fits the following 2002-2002 Honda Passport submodels:

• 2002-2002: All Submodels; All Engines;

BRAKE DISC, NATURAL FINISH, VENTED, SOLD INDIVIDUALLY

A high quality, OE replacement brake disc. This REPLACEMENT brake disc is made from premium material for optimum disc wear and manufactured to OE comparable design, fit and specifications for balance and reliability.

Specifications:

• 6 x 5.5 in. bolt pattern
• 12.32 in. outer diameter
• 3.98 in .inner diameter
• 0.5 in. bolt size
• 0.65 in. minimum thickness

Features and Benefits:

• Vented construction

Fits the following 1994-2002 Honda Passport submodels:

• 1998-2002: EX; All Engines;
• 1998-2002: LX; All Engines;

• 1994-2002: All Submodels; All Engines;

• 1994-1996: EX; 6 Cyl 3.2L;

• 1994-1996: LX; 6 Cyl 3.2L;

Fits 3 more submodels. (Show all) Show less info

BREMBO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Brembo Brake Discs. Built with quality that earned Brembo its OEM fitments, these discs are guaranteed to meet OE fit, form, and function.

Specifications:

• 6 lugs
• 280 mm disc diameter
• 26 mm thickness
• 24.6 mm minimum thickness
• 36 mm height
• QS-9000, ISO 9001, and TUV/ABE certified

Features:

• Made from casting that came from Brembo facilities to ensure uniform thickness
• Coated for corrosion resistance
• Machined to exacting tolerances
• Electronically balanced to minimize vibration

Fits the following 1996-2001 Honda Passport submodels:

• 1996-2001: All Submodels; All Engines;
• 1996-2001: EX; 6 Cyl 3.2L; "GAS, FI, 6VD1, Naturally Aspirated"

• 1996-2001: LX; 6 Cyl 3.2L; "GAS, FI, 6VD1, Naturally Aspirated"

• 1996-1996: DX; 4 Cyl 2.6L; "GAS, FI, 4ZE1, Naturally Aspirated"

Fits 2 more submodels. (Show all) Show less info

BENDIX GLOBAL BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with the aftermarket brake discs of Bendix Global. These discs are manufactured for quiet and safe ride, and designed for street use with stock calipers.

Specifications:

• 6 x 5.5 in. bolt pattern
• 11.41 in. disc diameter
• 0.97 in. minimum thickness
• 1.03 in. thickness

Features:

• Enhances stopping power
• Reduces noise while maximizing cooling resulting in less wear and more consistent braking

Fits the following 2002-2002 Honda Passport submodels:

• 2002-2002: All Submodels; All Engines;

POWERSTOP EXTREME PERFORMANCE BRAKE DISC, CROSS-DRILLED, VENTED, SOLD INDIVIDUALLY

Maximize your driving experience with Power Stop Extreme Performance Brake Discs. These are available in three designs: slotted, cross-drilled, and a combination of the two. The slotted discs improve brake performance by preventing gas and dust from building up between the pads and rotor surface. The resulting high speed stopping power makes them ideal for off-road, auto-cross, and track racing. Cross-drilled discs, on the other hand, operate up to 180 degrees cooler than standard discs due to the air that flows over and through the rotor. This makes them optimal for regular rides along city streets and highways. Discs that combine the two designs enjoy the benefits of both, making them perfect for street and day track applications.

Specifications:

• 6 x 110 mm
• 11.02 in. disc diameter
• 1.02 in. thickness

Features:

• Manufactured from G3000 grade castings with high carbon content for better temperature stability and heat transfer
• Carefully machined to prevent cracking by countering stress risers
• Treated with gold zinc dichromate finish that is highly resistant to corrosion and keeps rotor looking new
• Perfect for pulsating brakes and shaking steering wheel

Fits the following 1998-2001 Honda Passport submodels:

• 1998-2001: All Submodels; All Engines;

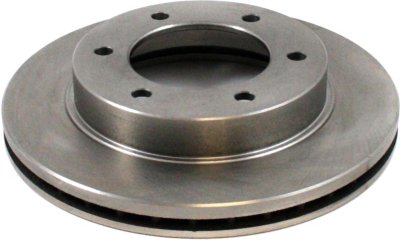

PRONTO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with Pronto OE replacement brake discs. These are manufactured by ISO certified factories to meet OE fit, form, and function and ensure smooth and vibration-free braking. They are engineered to high metallurgical standards for consistent strength, quality, and performance. The discs are given a non-directional swirl finish to eliminate the need for machining prior to installation; and they feature precise hub hole chamfers to ensure a hub centric fit. All in all, you are assured of complete repair when you use Pronto OE replacements.

Specifications:

• 6 x 139.7 mm bolt pattern
• 290 mm disc diameter
• ISO certified

Features:

• Designed with multiple vane configurations for suitable heat dissipation and improved performance
• Precision balanced to guarantee smooth vibration-free performance and reduce brake noise
• Non-directional swirl finish does away with machining prior to installation
• Precise hub hole chamfers ensure hub centric fit

Fits the following 2002-2002 Honda Passport submodels:

• 2002-2002: All Submodels; All Engines;

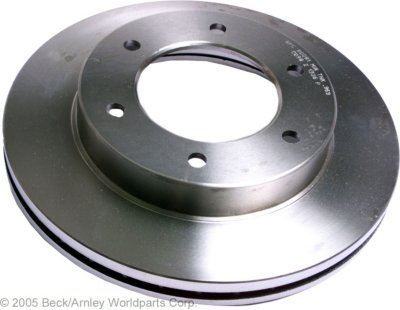

BECK ARNLEY PREMIUM BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Beck Arnley Premium Brake Discs. Built to meet or exceed OE specifications, these discs are guaranteed to conform to OE fit, form, and function.

Specifications:

• 6 lugs

Features:

• Hardness-tested to ensure durability
• OE vane configuration ensures OE form and function
• Manufactured from castings that came from state of the art foundries
• Coated for corrosion resistance
• No friction break-in or resurfacing prior to installation

Fits the following 2002-2002 Honda Passport submodels:

• 2002-2002: All Submodels; All Engines;

PBR Brake Disc

The PBR brake disc is an OE-Quality replacement that is manufactured to the highest quality standards. The PBR brake disc features a special anti-coning design and unique ventilation pattern that minimizes brake shudder, improves thermal efficiency and reduces noise.

• OE-Equivalent and Direct fit Application
• high carbon content disc
• special anti-coning design
• Resistant to vibrations and noise.
• Improved thermal efficiency

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Fits the following 1994-2002 Honda Passport submodels:

• 1994-2002: EX; 6 Cyl 3.2L;
• 1994-2002: LX; 6 Cyl 3.2L;

ATE Premium One Brake Disc

The ATE Premium One Gas Slotted brake disc is an OE-Quality replacement with a high performance edge. A multifunctional infinite loop gas slot design diverts heat, gasses and dirt, providing maximum braking response with little or no fading.

Original equipment quality with premium features that add convenience and enhance performance.

• OE-equivalent and a direct fit replacement.
• Disc made of high carbon steel.
• Patented RotorLife wear indicator.
• Groove design enhances dissipation of heat.
• Looks great with aluminum wheels.
• MetaCote protective anti-corrosion coating.
• Resistant to warping.

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Premium One

Fits the following 1994-2002 Honda Passport submodels:

• 1994-2002: EX; 6 Cyl 3.2L;
• 1994-2002: LX; 6 Cyl 3.2L;
