Mitsubishi Diamante Brake Disc

EBC ULTIMAX PREMIUM ROTOR (UPR) BRAKE DISC, VENTED, SOLD INDIVIDUALLY

EBC Ultimax Premium Rotors are quality replacements made to meet or exceed OE specifications.

Specifications:

• 5 lugs
• 10.87 in. disc diameter

Features:

• Manufactured to OE specifications using high tensile strength G3000 gray cast iron
• Precision machined, balanced, and 100 percent one by one run out inspected to guarantee zero rotor distortion out of the box

Professional installation is recommended, but you can install this brake disc yourself with EBC Instructional Video P/N E35DVD083 (sold separately). Never use old brake pads with new discs. For optimal braking performance, match UPR discs with the appropriate EBC brake pads.

Fits the following 1992-2004 Mitsubishi Diamante submodels:

• 2002-2004: VR-X; 6 Cyl 3.5L;
• 1997-2004: ES; 6 Cyl 3.5L;

• 1997-2004: LS; 6 Cyl 3.5L;

• 1999-1999: Base; 6 Cyl 3.5L;

• 1992-1996: ES; 6 Cyl 3.0L;

• 1992-1995: LS; 6 Cyl 3.0L;

Fits 4 more submodels. (Show all) Show less info

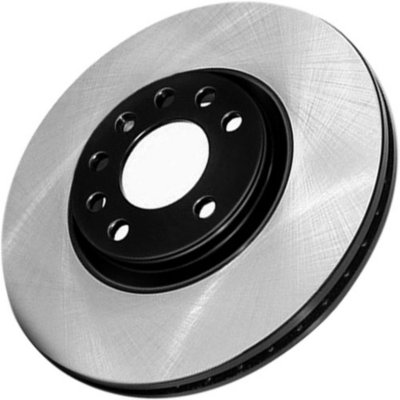

CENTRIC PREMIUM BRAKE DISC, FLOATING TYPE, SOLID, SOLD INDIVIDUALLY

Get the most out of your stock braking system with Centric Premium OE replacement brake discs. These rotors are manufactured using OE specifications and processes under strict QS and ISO quality standards to give you an ever reliable braking performance. Furthermore, they are given machined finishes for smoother and cleaner appearance.

Specifications:

• 5 x 114.3 mm bolt pattern
• 257.7 mm disc diameter
• 12.6 mm bolt size
• 8.4 mm minimum thickness

Features:

• Manufactured to meet QS and ISO quality system standards
• Utilizes an electrocoating finish that provides long lasting corrosion protection
• Designed to withstand 400 hours of salt water exposure without rusting
• Double disc grinding ensures parallelism, eliminates run out, and provides near perfect disc thickness
• The double disc grinding also leaves a non-directional finish on the friction surface area for more effective pad-disc break in while providing quieter and smoother stops
• Center-split core casting offers proper heat transfer and thermal efficiency for superior braking and safety
• 100 percent fully machined hat delivers better disc balance
• Mill-corrected to a tolerance of less than 2 oz. per inch

Fits the following 1997-2004 Mitsubishi Diamante submodels:

• 1997-2004: All Submodels; All Engines;

BREMBO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Brembo Brake Discs. Built with quality that earned Brembo its OEM fitments, these discs are guaranteed to meet OE fit, form, and function.

Specifications:

• 5 lugs
• 276 mm disc diameter
• 24 mm thickness
• 22.4 mm minimum thickness
• 45.3 mm height
• QS-9000, ISO 9001, and TUV/ABE certified

Features:

• Made from casting that came from Brembo facilities to ensure uniform thickness
• Coated for corrosion resistance
• Machined to exacting tolerances
• Electronically balanced to minimize vibration

Fits the following 1992-2002 Mitsubishi Diamante submodels:

• 2002-2002: VR-X; 6 Cyl 3.5L; "GAS, FI, 6G74, Naturally Aspirated, VIN P"
• 1997-2002: ES; 6 Cyl 3.5L; "GAS, FI, 6G74, Naturally Aspirated, VIN P"

• 1997-2002: LS; 6 Cyl 3.5L; "GAS, FI, 6G74, Naturally Aspirated, VIN P"

• 1992-2002: All Submodels; All Engines;

• 2000-2000: ES; 6 Cyl 3.5L; "GAS, FI, 6G74, Naturally Aspirated"

• 2000-2000: LS; 6 Cyl 3.5L; "GAS, FI, 6G74, Naturally Aspirated"

• 1999-1999: Base; 6 Cyl 3.5L; "GAS, FI, 6G74, Naturally Aspirated"

• 1993-1996: ES; 6 Cyl 3.0L; "GAS, FI, 6G72, Naturally Aspirated, VIN H"

• 1993-1995: LS; 6 Cyl 3.0L; "GAS, FI, 6G72, Naturally Aspirated, VIN J"

• 1992-1993: ES; 6 Cyl 3.0L; "GAS, FI, Naturally Aspirated, VIN S"

• 1992-1992: LS; 6 Cyl 3.0L; "GAS, FI, Naturally Aspirated, VIN B"

Fits 9 more submodels. (Show all) Show less info

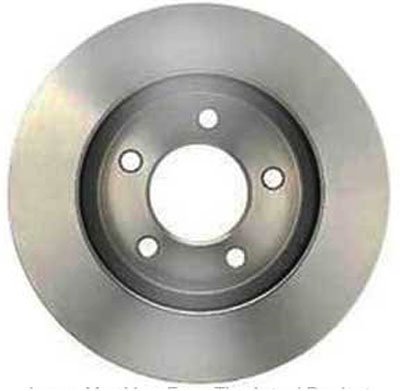

BENDIX GLOBAL BRAKE DISC, SOLID, SOLD INDIVIDUALLY

Bendix Global aftermarket brake discs provide quiet braking and a safe ride. These brake discs are designed for street use with stock calipers.

Features:

• Enhances stopping power
• Reduces noise while maximizing cooling, resulting in less wear and more consistent braking

Fits the following 1997-2004 Mitsubishi Diamante submodels:

• 1997-2004: All Submodels; All Engines;

POWERSTOP EXTREME PERFORMANCE BRAKE DISC, CROSS-DRILLED, VENTED, SOLD INDIVIDUALLY

Maximize your driving experience with Power Stop Extreme Performance Brake Discs. These are available in three designs: slotted, cross-drilled, and a combination of the two. The slotted discs improve brake performance by preventing gas and dust from building up between the pads and rotor surface. The resulting high speed stopping power makes them ideal for off-road, auto-cross, and track racing. Cross-drilled discs, on the other hand, operate up to 180 degrees cooler than standard discs due to the air that flows over and through the rotor. This makes them optimal for regular rides along city streets and highways. Discs that combine the two designs enjoy the benefits of both, making them perfect for street and day track applications.

Specifications:

• 5 x 4.5 in. bolt pattern
• 10.88 in. disc diameter
• 0.95 in. thickness

Features:

• Manufactured from G3000 grade castings with high carbon content for better temperature stability and heat transfer
• Carefully machined to prevent cracking by countering stress risers
• Treated with gold zinc dichromate finish that is highly resistant to corrosion and keeps rotor looking new
• Perfect for pulsating brakes and shaking steering wheel

Fits the following 1997-2004 Mitsubishi Diamante submodels:

• 1997-2004: All Submodels; All Engines;

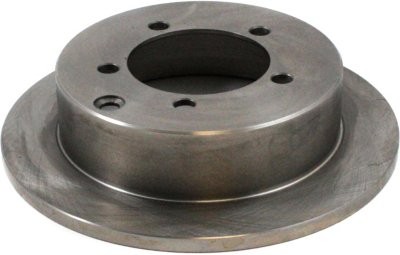

PRONTO BRAKE DISC, SOLID, SOLD INDIVIDUALLY

Repair your brake system with Pronto OE replacement brake discs. These are manufactured by ISO certified factories to meet OE fit, form, and function and ensure smooth and vibration-free braking. They are engineered to high metallurgical standards for consistent strength, quality, and performance. The discs are given a non-directional swirl finish to eliminate the need for machining prior to installation; and they feature precise hub hole chamfers to ensure a hub centric fit. All in all, you are assured of complete repair when you use Pronto OE replacements.

Specifications:

• 5 x 114.3 mm bolt pattern
• 257.7 mm disc diameter
• ISO certified

Features:

• Precision balanced to guarantee smooth vibration-free performance and reduce brake noise
• Non-directional swirl finish does away with machining prior to installation
• Precise hub hole chamfers ensure hub centric fit

Fits the following 1997-2004 Mitsubishi Diamante submodels:

• 1997-2004: All Submodels; All Engines;

BECK ARNLEY PREMIUM BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Beck Arnley Premium Brake Discs. Built to meet or exceed OE specifications, these discs are guaranteed to conform to OE fit, form, and function.

Specifications:

• 5 lugs

Features:

• Hardness-tested to ensure durability
• OE vane configuration ensures OE form and function
• Manufactured from castings that came from state of the art foundries
• Coated for corrosion resistance
• No friction break-in or resurfacing prior to installation

Fits the following 1992-2004 Mitsubishi Diamante submodels:

• 1992-2004: All Submodels; All Engines;
• 1992-1996: ES; All Engines;

AC DELCO DURASTOP BRAKE DISC, SOLID, SOLD INDIVIDUALLY

D3EA tested and approved, AC Delco DuraStop brake discs match OE design for heat dispersion. The resulting thermal efficiency, combined with minimized brake shudder, ensures optimum braking performance.

Specifications:

• 5 lugs
• D3EA, ISO/TS16949 certified

Features:

• Reduced brake noise and vibration
• Prolonged brake disc and brake pad life

Fits the following 1997-2002 Mitsubishi Diamante submodels:

• 1997-2002: All Submodels; All Engines;
