Nissan 200SX Brake Disc

EBC 3GD SPORT BRAKE ROTORS, DIMPLED AND SLOTTED, VENTED, SET OF 2

Keep your brake system cool with EBC 3GD Sport Series Brake Discs. These discs have wide aperture slots that draw cool air into the braking contact area, thereby reducing excess heat and preventing brake fade. During wet conditions, the slots help wick water away from the rotors while removing dirt, dust, debris, and gases created by heavy braking. Moreover, the slots maintain flat and parallel pad wear, keeping optimum pad contact throughout the life of the discs and pads. And, unlike other slotted discs that produce a lot of air noise, 3GD Sport Series Brake Discs only have three slots, making them more pleasant to the ear.

Specifications:

• 4 x 100 mm bolt pattern
• 9.71 in. disc diameter

Features:

• Made from precision machined, high quality gray iron that went through extensive testing and rigorous quality control
• Dimple drilled to avoid stress cracks
• Slotted to avoid the record grooves or galling common with non-slotted rotors
• New gold anodized EBC finish provides great looks whilst preventing corrosion

These discs are ideal for use with EBC upgrade sport pads. Install them yourself with EBC Instructional Video P/N E35DVD083 (sold separately).

Fits the following 1995-1998 Nissan 200SX submodels:

• 1997-1998: Base; 4 Cyl 1.6L;
• 1997-1998: SE; 4 Cyl 1.6L;

• 1995-1998: All Submodels; All Engines;

• 1995-1998: Base; 4 Cyl 2.0L;

• 1995-1998: SE-R; 4 Cyl 2.0L;

Fits 3 more submodels. (Show all) Show less info

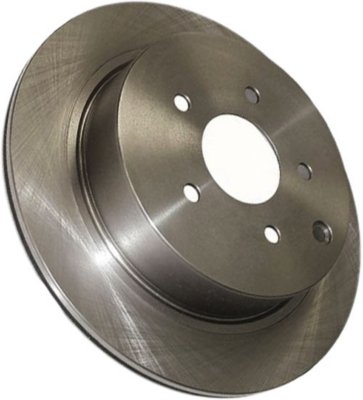

CENTRIC C-TEK BRAKE DISC, STANDARD, VENTED, SOLD INDIVIDUALLY -- 5 x 103 mm PCD bolt pattern; 274 mm outer diameter; 22 mm nominal thickness; 20 mm minimum thickness; This is a high quality OE replacement brake disc.

Fits the following 1987-1988 Nissan 200SX submodels:

• 1987-1988: All Submodels; All Engines;
• 1987-1988: SE; 6 Cyl 3.0L;

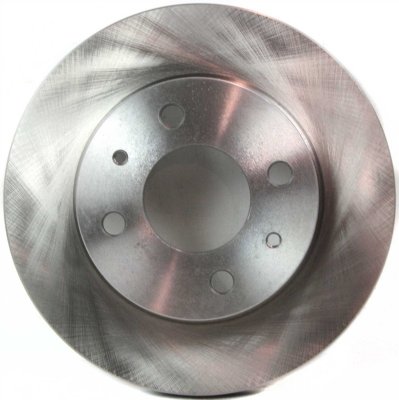

BRAKE DISC, NATURAL FINISH, VENTED, SOLD INDIVIDUALLY

A high quality, OE replacement brake disc. This REPLACEMENT brake disc is made from premium material for optimum disc wear and manufactured to OE comparable design, fit and specifications for balance and reliability.

Specifications:

• 4 x 3.94 in. bolt pattern
• 9.13 in. outer diameter
• 2.4 in .inner diameter
• 0.5 in. bolt size
• 0.63 in. minimum thickness

Features and Benefits:

• Vented construction

Fits the following 1995-1998 Nissan 200SX submodels:

• 1995-1998: All Submodels; All Engines;
• 1995-1998: Base; 4 Cyl 1.6L;

• 1995-1998: SE; 4 Cyl 1.6L;

Fits 1 more submodels. (Show all) Show less info

BREMBO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Brembo Brake Discs. Built with quality that earned Brembo its OEM fitments, these discs are guaranteed to meet OE fit, form, and function.

Specifications:

• 4 lugs
• 247 mm disc diameter
• 18 mm thickness
• 16 mm minimum thickness
• 45.2 mm height
• QS-9000, ISO 9001, and TUV/ABE certified

Features:

• Made from casting that came from Brembo facilities to ensure uniform thickness
• Coated for corrosion resistance
• Machined to exacting tolerances
• Electronically balanced to minimize vibration

Fits the following 1995-1998 Nissan 200SX submodels:

• 1995-1998: All Submodels; All Engines;
• 1995-1998: Base; 4 Cyl 1.6L;

• 1995-1998: Base; 4 Cyl 2.0L;

• 1995-1998: SE-R; 4 Cyl 2.0L;

• 1995-1998: SE; 4 Cyl 1.6L;

Fits 3 more submodels. (Show all) Show less info

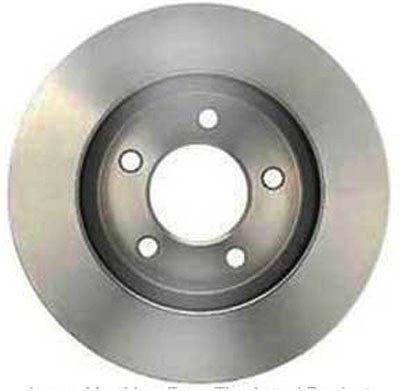

BENDIX GLOBAL BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Bendix Global aftermarket brake discs provide quiet braking and a safe ride. These brake discs are designed for street use with stock calipers.

Features:

• Enhances stopping power
• Reduces noise while maximizing cooling, resulting in less wear and more consistent braking

Fits the following 1996-1998 Nissan 200SX submodels:

• 1996-1998: All Submodels; All Engines;

POWERSTOP EXTREME PERFORMANCE BRAKE DISC, CROSS-DRILLED, VENTED, SOLD INDIVIDUALLY

Maximize your driving experience with Power Stop Extreme Performance Brake Discs. These are available in three designs: slotted, cross-drilled, and a combination of the two. The slotted discs improve brake performance by preventing gas and dust from building up between the pads and rotor surface. The resulting high speed stopping power makes them ideal for off-road, auto-cross, and track racing. Cross-drilled discs, on the other hand, operate up to 180 degrees cooler than standard discs due to the air that flows over and through the rotor. This makes them optimal for regular rides along city streets and highways. Discs that combine the two designs enjoy the benefits of both, making them perfect for street and day track applications.

Specifications:

• 4 x 100 mm
• 9.69 in. disc diameter
• 0.71 in. thickness

Features:

• Manufactured from G3000 grade castings with high carbon content for better temperature stability and heat transfer
• Carefully machined to prevent cracking by countering stress risers
• Treated with gold zinc dichromate finish that is highly resistant to corrosion and keeps rotor looking new
• Perfect for pulsating brakes and shaking steering wheel

Fits the following 1995-1998 Nissan 200SX submodels:

• 1998-1998: SE; 4 Cyl 1.6L;
• 1995-1998: Base; 4 Cyl 2.0L;

• 1995-1998: SE-R; 4 Cyl 2.0L;

Fits 1 more submodels. (Show all) Show less info

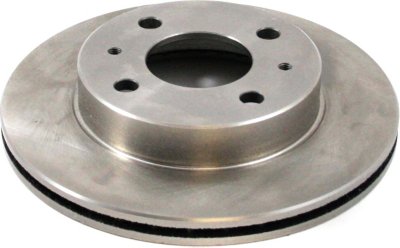

PRONTO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with Pronto OE replacement brake discs. These are manufactured by ISO certified factories to meet OE fit, form, and function and ensure smooth and vibration-free braking. They are engineered to high metallurgical standards for consistent strength, quality, and performance. The discs are given a non-directional swirl finish to eliminate the need for machining prior to installation; and they feature precise hub hole chamfers to ensure a hub centric fit. All in all, you are assured of complete repair when you use Pronto OE replacements.

Specifications:

• 4 x 100 mm bolt pattern
• 232 mm disc diameter
• ISO certified

Features:

• Designed with multiple vane configurations for suitable heat dissipation and improved performance
• Precision balanced to guarantee smooth vibration-free performance and reduce brake noise
• Non-directional swirl finish does away with machining prior to installation
• Precise hub hole chamfers ensure hub centric fit

Fits the following 1995-1998 Nissan 200SX submodels:

• 1995-1998: All Submodels; All Engines;
• 1995-1998: Base; 4 Cyl 1.6L;

• 1995-1998: SE; 4 Cyl 1.6L;

Fits 1 more submodels. (Show all) Show less info

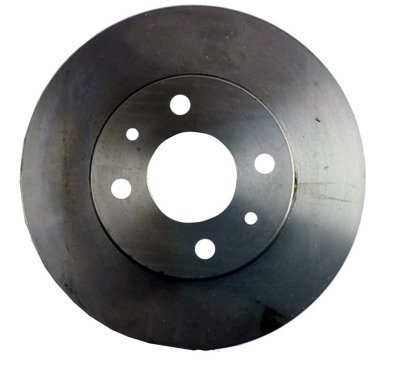

BECK ARNLEY PREMIUM BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Beck Arnley Premium Brake Discs. Built to meet or exceed OE specifications, these discs are guaranteed to conform to OE fit, form, and function.

Specifications:

• 4 lugs

Features:

• Hardness-tested to ensure durability
• OE vane configuration ensures OE form and function
• Manufactured from castings that came from state of the art foundries
• Coated for corrosion resistance
• No friction break-in or resurfacing prior to installation

Fits the following 1995-1998 Nissan 200SX submodels:

• 1995-1998: All Submodels; All Engines;
• 1995-1997: SE-R; 4 Cyl 2.0L; "SR20DE"

• 1995-1995: Base; 4 Cyl 2.0L; "SR20DE"

Fits 1 more submodels. (Show all) Show less info

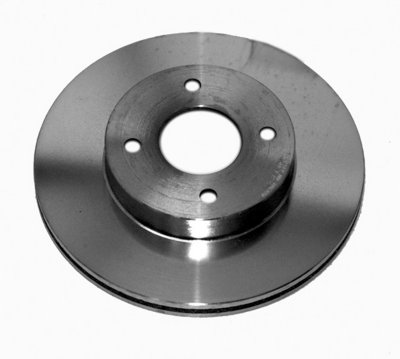

AC DELCO DURASTOP BRAKE DISC, VENTED, SOLD INDIVIDUALLY

D3EA tested and approved, AC Delco DuraStop brake discs match OE design for heat dispersion. The resulting thermal efficiency, combined with minimized brake shudder, ensures optimum braking performance.

Specifications:

• 4 lugs
• D3EA, ISO/TS16949 certified

Features:

• Reduced brake noise and vibration
• Prolonged brake disc and brake pad life

Fits the following 1995-1998 Nissan 200SX submodels:

• 1998-1998: Base; 4 Cyl 1.6L; "GAS, FI, GA16DE, Naturally Aspirated, VIN A"
• 1998-1998: Base; 4 Cyl 2.0L; "GAS, FI, SR20DE, Naturally Aspirated"

• 1998-1998: SE; 4 Cyl 1.6L; "GAS, FI, GA16DE, Naturally Aspirated, VIN A"

• 1996-1998: SE-R; 4 Cyl 2.0L; "GAS, FI, SR20DE, Naturally Aspirated, VIN B"

• 1995-1998: All Submodels; All Engines;

• 1995-1995: Base; 4 Cyl 2.0L; "GAS, FI, SR20DE, Naturally Aspirated, VIN B"

Fits 4 more submodels. (Show all) Show less info

ATE Premium One Brake Disc

The ATE Premium One Gas Slotted brake disc is an OE-Quality replacement with a high performance edge. A multifunctional infinite loop gas slot design diverts heat, gasses and dirt, providing maximum braking response with little or no fading.

Original equipment quality with premium features that add convenience and enhance performance.

• OE-equivalent and a direct fit replacement.
• Disc made of high carbon steel.
• Patented RotorLife wear indicator.
• Groove design enhances dissipation of heat.
• Looks great with aluminum wheels.
• MetaCote protective anti-corrosion coating.
• Resistant to warping.

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Fits the following 1995-1998 Nissan 200SX submodels:

• 1998-1998: Base; 4 Cyl 1.6L;
• 1998-1998: SE; 4 Cyl 1.6L;

• 1995-1998: SE-R; 4 Cyl 2.0L;

Fits 1 more submodels. (Show all) Show less info
