Nissan Xterra Brake Disc

EBC ULTIMAX SLOTTED ROTOR (USR) BLACKDASH SERIES BRAKE DISCS, SLOTTED, VENTED, BLACK ZINC, SET OF 2

Enjoy improved sport braking with EBC USR Blackdash Brake Discs. Just like regular slotted discs, these degas pads for cooler braking operation and help remove dirt, brake dust, and water from the brake area. They also promote flat and parallel pad wear for consistent braking performance during the life of the discs and the pads. But what sets Blackdash discs above all other slotted discs is its multi-slot pattern. Unlike regular slots that produce air noise, Blackdash disc slots are narrower in size and are set at a progressive angle, making braking operation incredibly quiet and effective at the same time.

Specifications:

• 6 lugs
• 11.24 in. disc diameter

Features:

• Manufactured to OE specifications using high tensile strength G3000 gray cast iron
• Coated with black zinc finish
• Maintains a flat and parallel pad wear and avoids the record grooves or galling common with non-slotted rotors

Professional installation is recommended, but you can install this brake disc yourself with EBC Instructional Video P/N E35DVD083 (sold separately). Never use old brake pads with new discs. For optimal braking performance, match Blackdash discs with EBC Redstuff, Greenstuff, or Yellowstuff brake pads.

Fits the following 2005-2011 Nissan Xterra submodels:

• 2011-2011: PRO-4X; 6 Cyl 4.0L;
• 2006-2011: X; 6 Cyl 4.0L;

• 2005-2011: S; 6 Cyl 4.0L;

• 2005-2010: Off-Road; 6 Cyl 4.0L;

• 2005-2010: SE; 6 Cyl 4.0L;

Fits 3 more submodels. (Show all) Show less info

CENTRIC PREMIUM BRAKE DISC, FLOATING TYPE, VENTED, SOLD INDIVIDUALLY

Get the most out of your stock braking system with Centric Premium OE replacement brake discs. These rotors are manufactured using OE specifications and processes under strict QS and ISO quality standards to give you an ever reliable braking performance. Furthermore, they are given machined finishes for smoother and cleaner appearance.

Specifications:

• 6 x 114.3 mm bolt pattern
• 295.8 mm disc diameter
• 12.8 mm bolt size
• 26 mm minimum thickness

Features:

• Manufactured to meet QS and ISO quality system standards
• Utilizes an electrocoating finish that provides long lasting corrosion protection
• Designed to withstand 400 hours of salt water exposure without rusting
• Double disc grinding ensures parallelism, eliminates run out, and provides near perfect disc thickness
• The double disc grinding also leaves a non-directional finish on the friction surface area for more effective pad-disc break in while providing quieter and smoother stops
• Center-split core casting offers proper heat transfer and thermal efficiency for superior braking and safety
• 100 percent fully machined hat delivers better disc balance
• Mill-corrected to a tolerance of less than 2 oz. per inch

Fits the following 2005-2010 Nissan Xterra submodels:

• 2005-2010: All Submodels; All Engines;

Fits the following 2005-2011 Nissan Xterra submodels:

• 2011-2011: PRO-4X; 6 Cyl 4.0L;
• 2011-2011: SV; 6 Cyl 4.0L;

• 2006-2011: X; 6 Cyl 4.0L;

• 2005-2011: S; 6 Cyl 4.0L;

• 2005-2010: Off-Road; 6 Cyl 4.0L;

• 2005-2010: SE; 6 Cyl 4.0L;

Fits 4 more submodels. (Show all) Show less info

BENDIX GLOBAL BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with the aftermarket brake discs of Bendix Global. These discs are manufactured for quiet and safe ride, and designed for street use with stock calipers.

Specifications:

• 6 x 4.5 in. bolt pattern
• 11.65 in. disc diameter
• 1.02 in. minimum thickness
• 1.1 in. thickness

Features:

• Enhances stopping power
• Reduces noise while maximizing cooling resulting in less wear and more consistent braking

Fits the following 2005-2011 Nissan Xterra submodels:

• 2005-2011: All Submodels; All Engines;

BOLTON PREMIERE SLOTTED AND DIMPLED BRAKE DISCS, VENTED, BLACK ZINC, SET OF 2

This Bolton Premiere product is manufactured from high quality and durable material to enhance the performance of your brake disc set. They come in black zinc finish for a sporty look and are sold in pairs for either front or rear for a hassle-free buying experience.

Specifications:

• 6 x 4.5 in. bolt pattern
• 11.65 in. outer diameter

Features and Benefits:

• Slotted and dimpled design allows more effective cooling
• Less prone to cracking than the cross-drilled brake discs
• Lighter weight and provide the most performance benefit for acceleration
• Vented construction; the set of vanes pump air through the disc to provide cooling
• Run cooler and are essential for competition cars or any vehicle where dependable performance is very important

Fits the following 2005-2011 Nissan Xterra submodels:

• 2011-2011: PRO-4X; 6 Cyl 4.0L;
• 2006-2011: X; 6 Cyl 4.0L;

• 2005-2011: All Submodels; All Engines;

• 2005-2011: S; 6 Cyl 4.0L;

• 2005-2010: Off-Road; 6 Cyl 4.0L;

• 2005-2010: SE; 6 Cyl 4.0L;

Fits 4 more submodels. (Show all) Show less info

POWERSTOP EXTREME PERFORMANCE BRAKE DISC, CROSS-DRILLED, VENTED, SOLD INDIVIDUALLY

Maximize your driving experience with Power Stop Extreme Performance Brake Discs. These are available in three designs: slotted, cross-drilled, and a combination of the two. The slotted discs improve brake performance by preventing gas and dust from building up between the pads and rotor surface. The resulting high speed stopping power makes them ideal for off-road, auto-cross, and track racing. Cross-drilled discs, on the other hand, operate up to 180 degrees cooler than standard discs due to the air that flows over and through the rotor. This makes them optimal for regular rides along city streets and highways. Discs that combine the two designs enjoy the benefits of both, making them perfect for street and day track applications.

Specifications:

• 6 x 5 in. bolt pattern
• 11.14 in. disc diameter
• 1.11 in. thickness

Features:

• Manufactured from G3000 grade castings with high carbon content for better temperature stability and heat transfer
• Carefully machined to prevent cracking by countering stress risers
• Treated with gold zinc dichromate finish that is highly resistant to corrosion and keeps rotor looking new
• Perfect for pulsating brakes and shaking steering wheel

Fits the following 2000-2004 Nissan Xterra submodels:

• 2000-2004: All Submodels; All Engines;

PRONTO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with Pronto OE replacement brake discs. These are manufactured by ISO certified factories to meet OE fit, form, and function and ensure smooth and vibration-free braking. They are engineered to high metallurgical standards for consistent strength, quality, and performance. The discs are given a non-directional swirl finish to eliminate the need for machining prior to installation; and they feature precise hub hole chamfers to ensure a hub centric fit. All in all, you are assured of complete repair when you use Pronto OE replacements.

Specifications:

• 6 x 114.3 mm bolt pattern
• 295.8 mm disc diameter
• ISO certified

Features:

• Designed with multiple vane configurations for suitable heat dissipation and improved performance
• Precision balanced to guarantee smooth vibration-free performance and reduce brake noise
• Non-directional swirl finish does away with machining prior to installation
• Precise hub hole chamfers ensure hub centric fit

Fits the following 2005-2012 Nissan Xterra submodels:

• 2005-2012: All Submodels; All Engines;

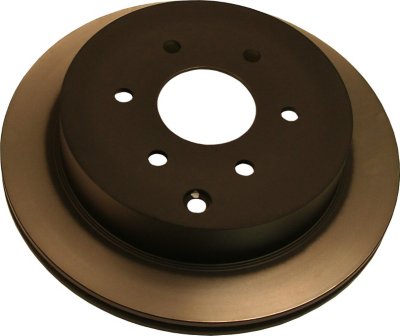

BECK ARNLEY PREMIUM BRAKE DISC, SOLD INDIVIDUALLY -- This is a high quality OE replacement brake disc.

Fits the following 2005-2012 Nissan Xterra submodels:

• 2012-2012: PRO-4X; All Engines;
• 2012-2012: S; All Engines;

• 2005-2012: All Submodels; All Engines;

Fits 1 more submodels. (Show all) Show less info

AC DELCO DURASTOP BRAKE DISC, VENTED, SOLD INDIVIDUALLY

D3EA tested and approved, AC Delco DuraStop brake discs match OE design for heat dispersion. The resulting thermal efficiency, combined with minimized brake shudder, ensures optimum braking performance.

Specifications:

• 6 lugs
• D3EA, ISO/TS16949 certified

Features:

• Reduced brake noise and vibration
• Prolonged brake disc and brake pad life

Fits the following 2005-2010 Nissan Xterra submodels:

• 2006-2010: X; 6 Cyl 4.0L;
• 2005-2010: All Submodels; All Engines;

• 2005-2010: Off-Road; 6 Cyl 4.0L;

• 2005-2010: S; 6 Cyl 4.0L;

• 2005-2010: SE; 6 Cyl 4.0L;

Fits 3 more submodels. (Show all) Show less info

ATE Premium One Brake Disc

The ATE Premium One Gas Slotted brake disc is an OE-Quality replacement with a high performance edge. A multifunctional infinite loop gas slot design diverts heat, gasses and dirt, providing maximum braking response with little or no fading.

Original equipment quality with premium features that add convenience and enhance performance.

• OE-equivalent and a direct fit replacement.
• Disc made of high carbon steel.
• Patented RotorLife wear indicator.
• Groove design enhances dissipation of heat.
• Looks great with aluminum wheels.
• MetaCote protective anti-corrosion coating.
• Resistant to warping.

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Premium One

Fits the following 2000-2004 Nissan Xterra submodels:

• 2000-2004: SE; 6 Cyl 3.3L;
• 2000-2004: XE; 4 Cyl 2.4L;

• 2000-2004: XE; 6 Cyl 3.3L;

• 2000-2002: SE; 4 Cyl 2.4L;

Fits 2 more submodels. (Show all) Show less info
