Porsche 944 Brake Disc

CENTRIC PREMIUM BRAKE DISC, FLOATING TYPE, VENTED, SOLD INDIVIDUALLY

Get the most out of your stock braking system with Centric Premium OE replacement brake discs. These rotors are manufactured using OE specifications and processes under strict QS and ISO quality standards to give you an ever reliable braking performance. Furthermore, they are given machined finishes for smoother and cleaner appearance.

Specifications:

• 5 x 130 mm bolt pattern
• 289 mm disc diameter
• 15.5 mm bolt size
• 18.6 mm minimum thickness

Features:

• Manufactured to meet QS and ISO quality system standards
• Utilizes an electrocoating finish that provides long lasting corrosion protection
• Designed to withstand 400 hours of salt water exposure without rusting
• Double disc grinding ensures parallelism, eliminates run out, and provides near perfect disc thickness
• The double disc grinding also leaves a non-directional finish on the friction surface area for more effective pad-disc break in while providing quieter and smoother stops
• Center-split core casting offers proper heat transfer and thermal efficiency for superior braking and safety
• 100 percent fully machined hat delivers better disc balance
• Mill-corrected to a tolerance of less than 2 oz. per inch

Fits the following 1983-1986 Porsche 944 submodels:

• 1986-1986: Base; All Engines;
• 1983-1986: All Submodels; All Engines;

BREMBO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Brembo Brake Discs. Built with quality that earned Brembo its OEM fitments, these discs are guaranteed to meet OE fit, form, and function.

Specifications:

• 5 lugs
• 282 mm disc diameter
• 20.4 mm thickness
• 19.1 mm minimum thickness
• 35.2 mm height
• QS-9000, ISO 9001, and TUV/ABE certified

Features:

• Made from casting that came from Brembo facilities to ensure uniform thickness
• Coated for corrosion resistance
• Machined to exacting tolerances
• Electronically balanced to minimize vibration

Fits the following 1983-1987 Porsche 944 submodels:

• 1987-1987: S; 4 Cyl 2.5L;
• 1986-1987: Turbo; 4 Cyl 2.5L;

• 1983-1987: All Submodels; All Engines;

• 1983-1987: Base; 4 Cyl 2.5L;

Fits 2 more submodels. (Show all) Show less info

POWERSTOP EXTREME PERFORMANCE BRAKE DISC, CROSS-DRILLED, VENTED, SOLD INDIVIDUALLY

Maximize your driving experience with Power Stop Extreme Performance Brake Discs. These are available in three designs: slotted, cross-drilled, and a combination of the two. The slotted discs improve brake performance by preventing gas and dust from building up between the pads and rotor surface. The resulting high speed stopping power makes them ideal for off-road, auto-cross, and track racing. Cross-drilled discs, on the other hand, operate up to 180 degrees cooler than standard discs due to the air that flows over and through the rotor. This makes them optimal for regular rides along city streets and highways. Discs that combine the two designs enjoy the benefits of both, making them perfect for street and day track applications.

Specifications:

• 5 lugs

Features:

• Manufactured from G3000 grade castings with high carbon content for better temperature stability and heat transfer
• Carefully machined to prevent cracking by countering stress risers
• Treated with gold zinc dichromate finish that is highly resistant to corrosion and keeps rotor looking new
• Perfect for pulsating brakes and shaking steering wheel

Fits the following 1987-1991 Porsche 944 submodels:

• 1991-1991: All Submodels; All Engines;
• 1990-1990: Base; 4 Cyl 3.0L;

• 1989-1990: S2; 4 Cyl 3.0L;

• 1989-1989: Turbo; 4 Cyl 2.5L;

• 1987-1988: Base; 4 Cyl 2.5L; "Turbocharged"

• 1987-1988: Turbo; 4 Cyl 2.5L; "Turbocharged"

Fits 4 more submodels. (Show all) Show less info

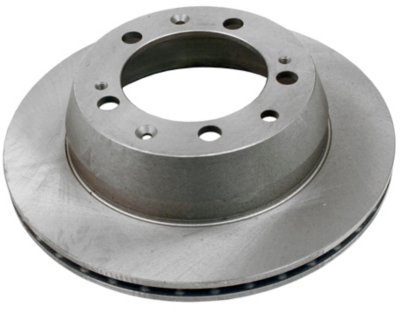

BECK ARNLEY PREMIUM BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Beck Arnley Premium Brake Discs. Built to meet or exceed OE specifications, these discs are guaranteed to conform to OE fit, form, and function.

Specifications:

• 5 lugs

Features:

• Hardness-tested to ensure durability
• OE vane configuration ensures OE form and function
• Manufactured from castings that came from state of the art foundries
• Coated for corrosion resistance
• No friction break-in or resurfacing prior to installation

Fits the following 1983-1986 Porsche 944 submodels:

• 1986-1986: Base; 4 Cyl 2.5L; "Naturally Aspirated"
• 1983-1986: All Submodels; All Engines;

Zimmermann Coated Brake Disc

The Zimmermann Formula Z brake disc is a direct fit OE-equivalent replacement and provides a protective coating that prevents rust and corrosion, extended rotor life and improved visual appearance.

• OE-Equivalent and Direct fit Application.
• High carbon content disc.
• No formation of rust at the hub and herewith improved visual appearance
• Immediate functional capability without removal of the coating before mounting
• German production meeting the requirements of actual Quality Management Systems
• Well known, highest Otto-Zimmermann-Product-Quality

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Coated

Fits the following 1986-1986 Porsche 944 submodels:

• 1986-1986: Turbo; 4 Cyl 2.5L;

Zimmermann Coated Cross Drilled Brake Disc

The Zimmermann Coated Cross Drilled brake disc is an OE-Quality replacement with a protective coating, enhanced visual appearance and high performance cooling. The Zimmermann Cross Drilled brake rotor is fully compatible with the vehicles hubs, calipers and wheels.

The rotor design is optimized by combining high-quality cast materials with a perforated cross drilled braking surface that provides improved braking power, expulsion of hot gasses, brake dust and water and deters brake fade under extreme conditions.

• OE-Equivalent and Direct fit Application.
• High carbon content disc.
• Noticeable improvement in the braking power of your vehicle.
• Prevention of brake fade.
• Permanent expulsion of brake dust and water.
• Countersinking of holes doubles up as wear indicator.
• No formation of rust at the hub and herewith improved visual appearance
• Immediate functional capability without removal of the coating before mounting.
• German production meeting the requirements of actual Quality Management Systems.
• Well known, highest Otto-Zimmermann-Product-Quality.

Warranty Information: 12 month - 12,000 mile limited warranty.

---

X-drilled - Coated

Fits the following 1986-1986 Porsche 944 submodels:

• 1986-1986: Turbo; 4 Cyl 2.5L;

ATE Premium One Brake Disc

The ATE Premium One Gas Slotted brake disc is an OE-Quality replacement with a high performance edge. A multifunctional infinite loop gas slot design diverts heat, gasses and dirt, providing maximum braking response with little or no fading.

Original equipment quality with premium features that add convenience and enhance performance.

• OE-equivalent and a direct fit replacement.
• Disc made of high carbon steel.
• Patented RotorLife wear indicator.
• Groove design enhances dissipation of heat.
• Looks great with aluminum wheels.
• MetaCote protective anti-corrosion coating.
• Resistant to warping.

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Premium One

Fits the following 1987-1989 Porsche 944 submodels:

• 1989-1989: Base; 4 Cyl 2.7L;
• 1987-1988: Base; 4 Cyl 2.5L;

• 1987-1988: S; 4 Cyl 2.5L;

Fits 1 more submodels. (Show all) Show less info
