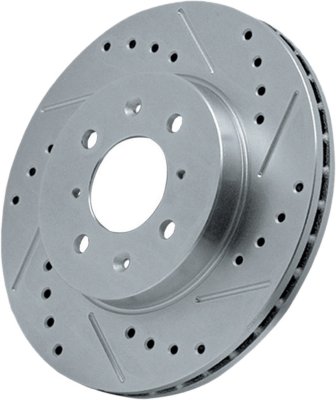

Saturn LS Brake Disc

• 5 lugs
• 11.34 in. disc diameter

• Manufactured to OE specifications using high tensile strength G3000 gray cast iron
• Precision machined, balanced, and 100 percent one by one run out inspected to guarantee zero rotor distortion out of the box

• 5 x 110 mm bolt pattern
• 288 mm disc diameter
• 14.25 mm bolt size
• 22 mm minimum thickness

• Manufactured to meet QS and ISO quality system standards
• Utilizes an electrocoating finish that provides long lasting corrosion protection
• Designed to withstand 400 hours of salt water exposure without rusting
• Double disc grinding ensures parallelism, eliminates run out, and provides near perfect disc thickness
• The double disc grinding also leaves a non-directional finish on the friction surface area for more effective pad-disc break in while providing quieter and smoother stops
• Center-split core casting offers proper heat transfer and thermal efficiency for superior braking and safety
• 100 percent fully machined hat delivers better disc balance
• Mill-corrected to a tolerance of less than 2 oz. per inch

A high quality, OE replacement brake disc. This REPLACEMENT brake disc is made from premium material for optimum disc wear and manufactured to OE comparable design, fit and specifications for balance and reliability.

Specifications:

• 5 x 4.33 in. bolt pattern
• 2.76 in .inner diameter
• 11.34 in. outer diameter
• 0.56 in. bolt size
• 0.87 in. minimum thickness

Features and Benefits:

• Vented construction

• 5 x 4.33 in. bolt pattern
• 11.33 in. disc diameter
• 0.87 in. minimum thickness
• 0.98 in. thickness

• Enhances stopping power
• Reduces noise while maximizing cooling resulting in less wear and more consistent braking

• 5 x 110 mm bolt pattern

• Manufactured from G3000 grade castings with high carbon content for better temperature stability and heat transfer
• Carefully machined to prevent cracking by countering stress risers
• Treated with gold zinc dichromate finish that is highly resistant to corrosion and keeps rotor looking new
• Perfect for pulsating brakes and shaking steering wheel

• 5 x 110 mm bolt pattern
• 288 mm disc diameter
• ISO certified

• Designed with multiple vane configurations for suitable heat dissipation and improved performance
• Precision balanced to guarantee smooth vibration-free performance and reduce brake noise
• Non-directional swirl finish does away with machining prior to installation
• Precise hub hole chamfers ensure hub centric fit

• 5 lugs
• D3EA, ISO/TS16949 certified

• Reduced brake noise and vibration
• Prolonged brake disc and brake pad life

• OE-Equivalent and a direct fit replacement.
• High carbon brake disc.
• Resistance to warping and scoring.
• Excellent performance under all braking conditions
