Toyota Supra Brake Disc

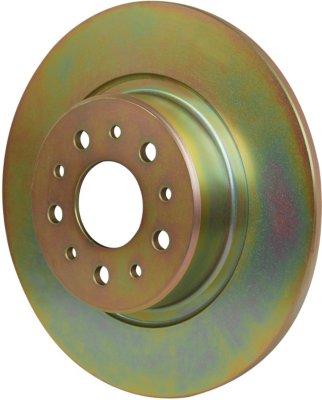

EBC ULTIMAX PREMIUM ROTOR (UPR) BRAKE DISC, VENTED, SOLD INDIVIDUALLY

EBC Ultimax Premium Rotors are quality replacements made to meet or exceed OE specifications.

Specifications:

• 5 lugs
• 12.76 in. disc diameter

Features:

• Manufactured to OE specifications using high tensile strength G3000 gray cast iron
• Precision machined, balanced, and 100 percent one by one run out inspected to guarantee zero rotor distortion out of the box

Professional installation is recommended, but you can install this brake disc yourself with EBC Instructional Video P/N E35DVD083 (sold separately). Never use old brake pads with new discs. For optimal braking performance, match UPR discs with the appropriate EBC brake pads.

Fits the following 1996-1998 Toyota Supra submodels:

• 1996-1998: Twin Turbo; 6 Cyl 3.0L; "Turbocharged"

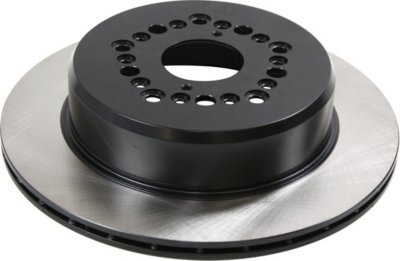

CENTRIC PREMIUM BRAKE DISC, FLOATING TYPE, SOLID, SOLD INDIVIDUALLY

Get the most out of your stock braking system with Centric Premium OE replacement brake discs. These rotors are manufactured using OE specifications and processes under strict QS and ISO quality standards to give you an ever reliable braking performance. Furthermore, they are given machined finishes for smoother and cleaner appearance.

Specifications:

• 5 x 114.3 mm bolt pattern
• 306.7 mm disc diameter
• 14.5 mm bolt size
• 15 mm minimum thickness

Features:

• Manufactured to meet QS and ISO quality system standards
• Utilizes an electrocoating finish that provides long lasting corrosion protection
• Designed to withstand 400 hours of salt water exposure without rusting
• Double disc grinding ensures parallelism, eliminates run out, and provides near perfect disc thickness
• The double disc grinding also leaves a non-directional finish on the friction surface area for more effective pad-disc break in while providing quieter and smoother stops
• Center-split core casting offers proper heat transfer and thermal efficiency for superior braking and safety
• 100 percent fully machined hat delivers better disc balance
• Mill-corrected to a tolerance of less than 2 oz. per inch

Fits the following 1993-1998 Toyota Supra submodels:

• 1993-1998: All Submodels; All Engines;
• 1993-1998: Base; All Engines;

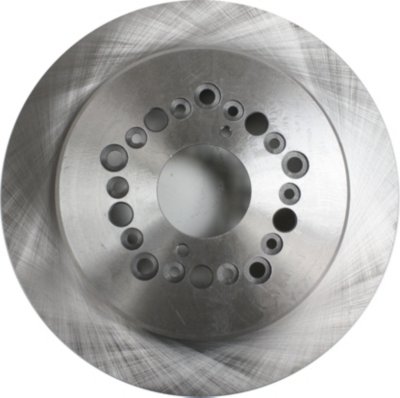

BRAKE DISC, NATURAL FINISH, VENTED, SOLD INDIVIDUALLY

A high quality, OE replacement brake disc. This REPLACEMENT brake disc is made from premium material for optimum disc wear and manufactured to OE comparable design, fit and specifications for balance and reliability.

Specifications:

• 5 x 4.5 in. bolt pattern
• 12.08 in. outer diameter
• 2.44 in .inner diameter
• 0.57 in. bolt size
• 0.6 in. minimum thickness

Features and Benefits:

• Vented construction

Fits the following 1993-1998 Toyota Supra submodels:

• 1993-1998: All Submodels; All Engines;
• 1993-1998: Base; All Engines;

BREMBO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Brembo Brake Discs. Built with quality that earned Brembo its OEM fitments, these discs are guaranteed to meet OE fit, form, and function.

Specifications:

• 5 lugs
• 306.8 mm disc diameter
• 16 mm thickness
• 15 mm minimum thickness
• 67.2 mm height
• QS-9000, ISO 9001, and TUV/ABE certified

Features:

• Made from casting that came from Brembo facilities to ensure uniform thickness
• Coated for corrosion resistance
• Machined to exacting tolerances
• Electronically balanced to minimize vibration

Fits the following 1993-1998 Toyota Supra submodels:

• 1996-1998: Base; 6 Cyl 3.0L; "GAS, FI, 2JZGE, Naturally Aspirated, VIN D"
• 1993-1998: All Submodels; All Engines;

• 1993-1995: Base; 6 Cyl 3.0L; "GAS, FI, 2JZGE, Naturally Aspirated, VIN J"

Fits 1 more submodels. (Show all) Show less info

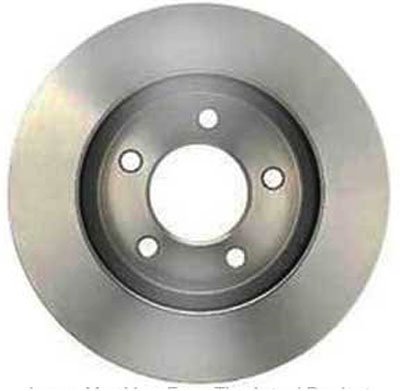

BENDIX GLOBAL BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Bendix Global aftermarket brake discs provide quiet braking and a safe ride. These brake discs are designed for street use with stock calipers.

Features:

• Enhances stopping power
• Reduces noise while maximizing cooling, resulting in less wear and more consistent braking

Fits the following 1993-1996 Toyota Supra submodels:

• 1993-1996: All Submodels; All Engines;

POWERSTOP EXTREME PERFORMANCE BRAKE DISC, CROSS-DRILLED, VENTED, SOLD INDIVIDUALLY

Maximize your driving experience with Power Stop Extreme Performance Brake Discs. These are available in three designs: slotted, cross-drilled, and a combination of the two. The slotted discs improve brake performance by preventing gas and dust from building up between the pads and rotor surface. The resulting high speed stopping power makes them ideal for off-road, auto-cross, and track racing. Cross-drilled discs, on the other hand, operate up to 180 degrees cooler than standard discs due to the air that flows over and through the rotor. This makes them optimal for regular rides along city streets and highways. Discs that combine the two designs enjoy the benefits of both, making them perfect for street and day track applications.

Specifications:

• 5 x 4.5 in. bolt pattern
• 11.65 in. disc diameter
• 1.26 in. thickness

Features:

• Manufactured from G3000 grade castings with high carbon content for better temperature stability and heat transfer
• Carefully machined to prevent cracking by countering stress risers
• Treated with gold zinc dichromate finish that is highly resistant to corrosion and keeps rotor looking new
• Perfect for pulsating brakes and shaking steering wheel

Fits the following 1993-1998 Toyota Supra submodels:

• 1993-1998: Base; 6 Cyl 3.0L; "Naturally Aspirated"

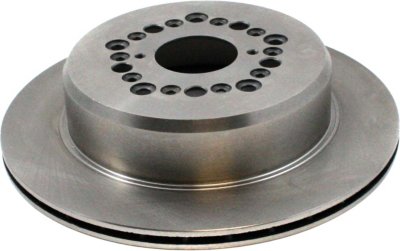

PRONTO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with Pronto OE replacement brake discs. These are manufactured by ISO certified factories to meet OE fit, form, and function and ensure smooth and vibration-free braking. They are engineered to high metallurgical standards for consistent strength, quality, and performance. The discs are given a non-directional swirl finish to eliminate the need for machining prior to installation; and they feature precise hub hole chamfers to ensure a hub centric fit. All in all, you are assured of complete repair when you use Pronto OE replacements.

Specifications:

• 5 x 114.3 mm bolt pattern
• 306.7 mm disc diameter
• ISO certified

Features:

• Designed with multiple vane configurations for suitable heat dissipation and improved performance
• Precision balanced to guarantee smooth vibration-free performance and reduce brake noise
• Non-directional swirl finish does away with machining prior to installation
• Precise hub hole chamfers ensure hub centric fit

Fits the following 1993-1998 Toyota Supra submodels:

• 1993-1998: All Submodels; All Engines;

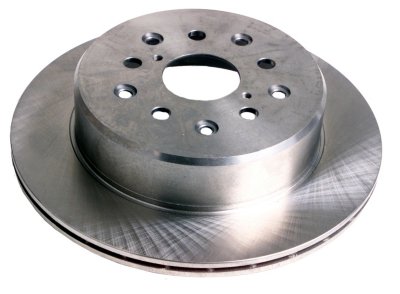

BECK ARNLEY PREMIUM BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Beck Arnley Premium Brake Discs. Built to meet or exceed OE specifications, these discs are guaranteed to conform to OE fit, form, and function.

Specifications:

• 5 lugs

Features:

• Hardness-tested to ensure durability
• OE vane configuration ensures OE form and function
• Manufactured from castings that came from state of the art foundries
• Coated for corrosion resistance
• No friction break-in or resurfacing prior to installation

Fits the following 1993-1998 Toyota Supra submodels:

• 1993-1998: All Submodels; All Engines;
• 1993-1998: Base; 6 Cyl 3.0L; "2JZGE"

• 1993-1998: Twin Turbo; 6 Cyl 3.0L; "2JZGE"

Fits 1 more submodels. (Show all) Show less info

SP PERFORMANCE DIAMOND CUT DISCS, SLOTTED, VENTED, SET OF 2

Repair your brake system with SP Performance Diamond Slotted Brake Discs. These high quality discs are manufactured to OE specifications, made from top-quality materials, and feature a unique slotted technology.

Specifications:

• 10 lugs
• 11.65 in. diameter

Features:

• Diamond slot
• CAD designed and CNC machined
• Greatly improves pad to disc contact
• Increases brake pad safety and reliability
• Cools faster to help prevent disc from warping
• Decreases hydroplaning between pad and disc during wet weather braking

Fits the following 1993-1998 Toyota Supra submodels:

• 1993-1998: All Submodels; All Engines;

ATE Premium One Brake Disc

The ATE Premium One Gas Slotted brake disc is an OE-Quality replacement with a high performance edge. A multifunctional infinite loop gas slot design diverts heat, gasses and dirt, providing maximum braking response with little or no fading.

Original equipment quality with premium features that add convenience and enhance performance.

• OE-equivalent and a direct fit replacement.
• Disc made of high carbon steel.
• Patented RotorLife wear indicator.
• Groove design enhances dissipation of heat.
• Looks great with aluminum wheels.
• MetaCote protective anti-corrosion coating.
• Resistant to warping.

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Premium One

Fits the following 1994-1998 Toyota Supra submodels:

• 1994-1998: Base; 6 Cyl 3.0L; "2JZGE"
• 1994-1998: Twin Turbo; 6 Cyl 3.0L; "2JZGE"
