Volvo C70 Brake Disc

EBC ULTIMAX PREMIUM ROTOR (UPR) BRAKE DISC, SOLID, SOLD INDIVIDUALLY

EBC Ultimax Premium Rotors are quality replacements made to meet or exceed OE specifications.

Specifications:

• 5 lugs
• 11.02 in. disc diameter

Features:

• Manufactured to OE specifications using high tensile strength G3000 gray cast iron
• Precision machined, balanced, and 100 percent one by one run out inspected to guarantee zero rotor distortion out of the box

Professional installation is recommended, but you can install this brake disc yourself with EBC Instructional Video P/N E35DVD083 (sold separately). Never use old brake pads with new discs. For optimal braking performance, match UPR discs with the appropriate EBC brake pads.

Fits the following 2006-2010 Volvo C70 submodels:

• 2006-2010: T5; 5 Cyl 2.5L;

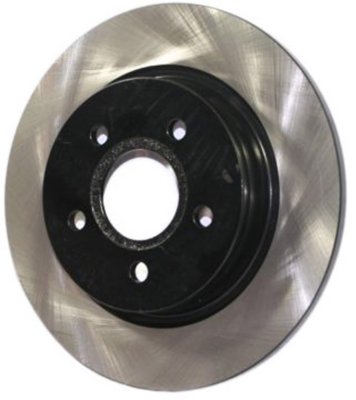

CENTRIC PREMIUM BRAKE DISC, FLOATING TYPE, SOLID, SOLD INDIVIDUALLY

Get the most out of your stock braking system with Centric Premium OE replacement brake discs. These rotors are manufactured using OE specifications and processes under strict QS and ISO quality standards to give you an ever reliable braking performance. Furthermore, they are given machined finishes for smoother and cleaner appearance.

Specifications:

• 5 x 108 mm bolt pattern
• 280 mm disc diameter
• 13.8 mm bolt size
• 9 mm minimum thickness

Features:

• Manufactured to meet QS and ISO quality system standards
• Utilizes an electrocoating finish that provides long lasting corrosion protection
• Designed to withstand 400 hours of salt water exposure without rusting
• Double disc grinding ensures parallelism, eliminates run out, and provides near perfect disc thickness
• The double disc grinding also leaves a non-directional finish on the friction surface area for more effective pad-disc break in while providing quieter and smoother stops
• Center-split core casting offers proper heat transfer and thermal efficiency for superior braking and safety
• 100 percent fully machined hat delivers better disc balance
• Mill-corrected to a tolerance of less than 2 oz. per inch

Fits the following 2006-2010 Volvo C70 submodels:

• 2006-2010: All Submodels; All Engines;

BRAKE DISC, NATURAL FINISH, SOLID, SOLD INDIVIDUALLY

A high quality, OE replacement brake disc. This REPLACEMENT brake disc is made from premium material for optimum disc wear and manufactured to OE comparable design, fit and specifications for balance and reliability.

Specifications:

• 5 x 4.25 in. bolt pattern
• 2.68 in .inner diameter
• 11.61 in. outer diameter
• 0.58 in. bolt size
• 0.33 in. minimum thickness
• Non-directional

Fits the following 1998-2004 Volvo C70 submodels:

• 1998-2004: All Submodels; All Engines;

BREMBO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Restore the braking performance of your vehicle with Brembo Brake Discs. Built with quality that earned Brembo its OEM fitments, these discs are guaranteed to meet OE fit, form, and function.

Specifications:

• 5 lugs
• 280 mm disc diameter
• 26 mm thickness
• 23 mm minimum thickness
• 50.3 mm height
• QS-9000, ISO 9001, and TUV/ABE certified

Features:

• Made from casting that came from Brembo facilities to ensure uniform thickness
• Coated for corrosion resistance
• Machined to exacting tolerances
• Electronically balanced to minimize vibration

Fits the following 2002-2002 Volvo C70 submodels:

• 2002-2002: All Submodels; All Engines;
• 2002-2002: Base; 5 Cyl 2.3L; "GAS, FI, B5234T3, Turbocharged"

• 2002-2002: Base; 5 Cyl 2.4L; "GAS, FI, B5244T, Turbocharged"

Fits 1 more submodels. (Show all) Show less info

BENDIX GLOBAL BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Bendix Global aftermarket brake discs provide quiet braking and a safe ride. These brake discs are designed for street use with stock calipers.

Features:

• Enhances stopping power
• Reduces noise while maximizing cooling, resulting in less wear and more consistent braking

Fits the following 1999-2004 Volvo C70 submodels:

• 1999-2004: All Submodels; All Engines;

POWERSTOP CROSS DRILLED BRAKE ROTOR, SOLID, SOLD INDIVIDUALLY -- 5 x 108 mm bolt hole pattern; 11.610 in. outside diameter; 0.380 in. thickness; Engineered to effectively dissipate heat and eliminate hot spots by letting the air flow over and through the precision CNC-machined drilled holes; Perfect for pulsating brakes and shaking steering wheel; Runs 200 degrees cooler which prevents warping; Treated with a gold zinc dichromate finish to keep it looking new; Includes Powerstop's 3-year warranty against cracking if purchased with Powerstop Z series friction products.

Fits the following 1998-2004 Volvo C70 submodels:

• 1998-2004: All Submodels; All Engines;

PRONTO BRAKE DISC, VENTED, SOLD INDIVIDUALLY

Repair your brake system with Pronto OE replacement brake discs. These are manufactured by ISO certified factories to meet OE fit, form, and function and ensure smooth and vibration-free braking. They are engineered to high metallurgical standards for consistent strength, quality, and performance. The discs are given a non-directional swirl finish to eliminate the need for machining prior to installation; and they feature precise hub hole chamfers to ensure a hub centric fit. All in all, you are assured of complete repair when you use Pronto OE replacements.

Specifications:

• 5 x 108 mm bolt pattern
• 280 mm disc diameter
• ISO certified

Features:

• Designed with multiple vane configurations for suitable heat dissipation and improved performance
• Precision balanced to guarantee smooth vibration-free performance and reduce brake noise
• Non-directional swirl finish does away with machining prior to installation
• Precise hub hole chamfers ensure hub centric fit

Fits the following 1998-2004 Volvo C70 submodels:

• 1998-2004: All Submodels; All Engines;

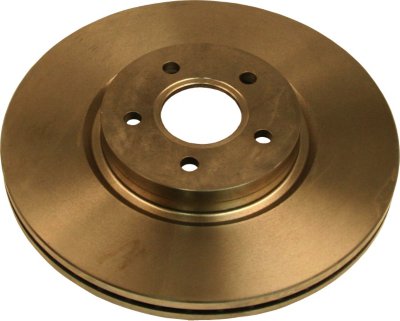

BECK ARNLEY PREMIUM BRAKE DISC, SOLD INDIVIDUALLY -- This is a high quality OE replacement brake disc.

Fits the following 2006-2013 Volvo C70 submodels:

• 2013-2013: T5; 5 Cyl 2.5L;
• 2006-2012: All Submodels; All Engines;

Zimmermann Coated Brake Disc

The Zimmermann Formula Z brake disc is a direct fit OE-equivalent replacement and provides a protective coating that prevents rust and corrosion, extended rotor life and improved visual appearance.

• OE-Equivalent and Direct fit Application.
• High carbon content disc.
• No formation of rust at the hub and herewith improved visual appearance
• Immediate functional capability without removal of the coating before mounting
• German production meeting the requirements of actual Quality Management Systems
• Well known, highest Otto-Zimmermann-Product-Quality

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Coated

Fits the following 1998-2004 Volvo C70 submodels:

• 1998-2004: Base; 5 Cyl 2.3L;
• 1998-2004: Base; 5 Cyl 2.4L;

AC DELCO DURASTOP BRAKE DISC, VENTED, SOLD INDIVIDUALLY

D3EA tested and approved, AC Delco DuraStop brake discs match OE design for heat dispersion. The resulting thermal efficiency, combined with minimized brake shudder, ensures optimum braking performance.

Specifications:

• 5 lugs
• D3EA, ISO/TS16949 certified

Features:

• Reduced brake noise and vibration
• Prolonged brake disc and brake pad life

Fits the following 1998-2001 Volvo C70 submodels:

• 2001-2001: Base; 5 Cyl 2.3L; "GAS, FI, B5234T3, Turbocharged"
• 1998-2001: All Submodels; All Engines;

• 2000-2000: Base; 5 Cyl 2.3L; "GAS, FI, B5234T3, Turbocharged, VIN 53"

• 1999-1999: Base; 5 Cyl 2.4L; "GAS, FI, B5254T, Turbocharged, VIN 56"

• 1998-1998: Base; 5 Cyl 2.3L; "GAS, FI, B5234T3, Turbocharged, VIN 52"

Fits 3 more submodels. (Show all) Show less info

Zimmermann Brake Disc

The Zimmermann brake disc is an OE-Quality replacement and is an original equipment supplier to many European automotive manufacturers.

• OE-Equivalent and Direct fit Application.
• High carbon content disc.
• Immediate functional capability without removal of the coating before mounting
• German production meeting the requirements of actual Quality Management Systems
• Well known, highest Otto-Zimmermann-Product-Quality

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Fits the following 1998-2004 Volvo C70 submodels:

• 1998-2004: Base; 5 Cyl 2.3L;
• 1998-2004: Base; 5 Cyl 2.4L;

Balo Brake Disc

Balo manufactures an OE-equivalent Brake Disc that is produced with the highest quality materials and craftsmanship, providing superior fit and performance.

• OE-Equivalent and a direct fit replacement.
• High carbon brake disc.
• Resistance to warping and scoring.
• Excellent performance under all braking conditions

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Fits the following 2006-2011 Volvo C70 submodels:

• 2006-2011: T5; 5 Cyl 2.5L;

Zimmermann Coated Cross Drilled Brake Disc

The Zimmermann Coated Cross Drilled brake disc is an OE-Quality replacement with a protective coating, enhanced visual appearance and high performance cooling. The Zimmermann Cross Drilled brake rotor is fully compatible with the vehicles hubs, calipers and wheels.

The rotor design is optimized by combining high-quality cast materials with a perforated cross drilled braking surface that provides improved braking power, expulsion of hot gasses, brake dust and water and deters brake fade under extreme conditions.

• OE-Equivalent and Direct fit Application.
• High carbon content disc.
• Noticeable improvement in the braking power of your vehicle.
• Prevention of brake fade.
• Permanent expulsion of brake dust and water.
• Countersinking of holes doubles up as wear indicator.
• No formation of rust at the hub and herewith improved visual appearance
• Immediate functional capability without removal of the coating before mounting.
• German production meeting the requirements of actual Quality Management Systems.
• Well known, highest Otto-Zimmermann-Product-Quality.

Warranty Information: 12 month - 12,000 mile limited warranty.

---

X-drilled - Coated

Fits the following 1998-2004 Volvo C70 submodels:

• 1998-2004: Base; 5 Cyl 2.3L;
• 1998-2004: Base; 5 Cyl 2.4L;

Winhere Brake Disc

The Winhere brake disc is an OE-Quality replacement for the premium segment of the European aftermarket.

• OE-Equivalent and Direct fit Application.
• High carbon content disc.
• Protective anti-corrosion coating.
• Resistance to thermal cracking and distortion
• Provides a higher friction coefficient.
• Resistant to vibrations and noise.
• Improved heat dissipation

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Fits the following 2006-2011 Volvo C70 submodels:

• 2006-2011: T5; 5 Cyl 2.5L;

ATE Premium One Brake Disc

The ATE Premium One Gas Slotted brake disc is an OE-Quality replacement with a high performance edge. A multifunctional infinite loop gas slot design diverts heat, gasses and dirt, providing maximum braking response with little or no fading.

Original equipment quality with premium features that add convenience and enhance performance.

• OE-equivalent and a direct fit replacement.
• Disc made of high carbon steel.
• Patented RotorLife wear indicator.
• Groove design enhances dissipation of heat.
• Looks great with aluminum wheels.
• MetaCote protective anti-corrosion coating.
• Resistant to warping.

Warranty Information: 12 month - 12,000 mile limited warranty.

---

Premium One

Fits the following 1998-2004 Volvo C70 submodels:

• 1998-2004: Base; 5 Cyl 2.3L;
• 1998-2004: Base; 5 Cyl 2.4L;
