GMC P35/P3500 Van Engine Long Block

CYLINDER HEAD GASKET SET -- Does not include head bolts; A high quality, OE replacement cylinder head gasket set; Backed by 1-year, unlimited-mileage warranty.

Fits the following 1967-1974 GMC P35/P3500 Van submodels:

• 1973-1974: Base; 8 Cyl 5.7L; "GAS, CARB, Naturally Aspirated, VIN Y"
• 1970-1972: Base; 8 Cyl 5.7L; "GAS, CARB, Naturally Aspirated, VIN E"

• 1968-1969: Base; 8 Cyl 5.0L; "GAS, CARB, Naturally Aspirated, VIN E"

• 1967-1967: Base; 8 Cyl 4.6L; "GAS, CARB, Naturally Aspirated"

Fits 2 more submodels. (Show all) Show less info

FELPRO PERMATORQUE FULL GASKET SET -- Contains head gasket, intake gasket, oil pan gasket, rear main seal, exhaust manifold gasket, valve cover gasket, valve stem seals, water pump gasket, timing cover gasket, timing cover seal, water neck gasket, fuel pump gasket, and distributor gasket; Does not include head bolts and 2-17/32 in. ID exhaust pipe packing; An all inclusive set for a complete engine overhaul; Intended for upper and lower engine work combined; Set contents may vary depending on application; Head bolt replacement recommended; With 1-year Felpro limited warranty.

Fits the following 1967-1974 GMC P35/P3500 Van submodels:

• 1973-1974: Base; 8 Cyl 5.7L; "GAS, CARB, Naturally Aspirated, VIN Y"
• 1973-1973: Base; 8 Cyl 5.0L; "GAS, CARB, Naturally Aspirated, VIN X"

• 1972-1972: Base; 8 Cyl 5.0L; "GAS, CARB, Naturally Aspirated, VIN F"

• 1970-1972: Base; 8 Cyl 5.7L; "GAS, CARB, Naturally Aspirated, VIN E"

• 1971-1971: Base; 8 Cyl 5.0L; "GAS, CARB, Naturally Aspirated, VIN H"

• 1970-1970: Base; 8 Cyl 5.0L; "GAS, CARB, Naturally Aspirated, VIN A"

• 1968-1969: Base; 8 Cyl 5.0L; "GAS, CARB, Naturally Aspirated, VIN E"

• 1967-1967: Base; 8 Cyl 4.6L; "GAS, CARB, Naturally Aspirated"

Fits 6 more submodels. (Show all) Show less info

TEMPERATURE SENSOR -- Male connector, 1 terminal, male terminal, slide terminal type, 1/2 in. -18 NPT thread size; A high quality, direct fit OE replacement temperature sensor; With 3-year or 36,000-mile Standard limited warranty.

Fits the following 1966-1974 GMC P35/P3500 Van submodels:

• 1966-1974: All Submodels; All Engines;

BLUE PRINT ENGINE ASSEMBLY, DRESSED, NEW

Blue Print Engine Assembly is completely balanced, blueprinted, and dyno-tested. Comes complete with a fuel system, ignition system, and water and fuel pumps. Tested, analyzed, and ensures predictable and reliable performance.

Specifications:

• 1.44 in. diameter valve springs
• 2.02 in. swirl polished intake valves
• 1.6 in. swirl polished exhaust valves
• 380 ft./lbs. of torque
• 9.5:1 compression ratio
• Dyno tested to produce 360 h.p.
• 4 bolt main block
• Square and parallel decked
• Align honed main bearing bore
• Hardened push rods, retainers, and springs
• Flat tappet hydraulic lifter
• New Dart aluminum cylinder heads
• Includes Professional Products dual plane satin finish intake manifold, Edelbrock 600 cfm carburetor, Signature series aluminum valve covers, and brass freeze plugs

Features:

• 110 degree lobe separation
• Duration at 0.05 in. lift is 224 intake/230 exhaust and maximum lift of 0.48 in. intake/0.49 in. exhaust
• Ignition timing: 13 to 16 degree initial/34 degree total timing advance
• Balanced within 2g on a computerized balancer
• Cylinders are sonic tested for thickness and honed on a computer controlled machine to within 0.0002 in. straightness and roundness
• New Scat cast crankshaft, new Scat I-beam rods, Keith Black hypereutectic pistons with Hastings moly rings, Melling high volume oil pump, and heavy duty double roller timing set

Driver side dipstick sold separately.

Fits the following 1970-1974 GMC P35/P3500 Van submodels:

• 1970-1974: Base; 8 Cyl 5.7L; "GAS, CARB, Naturally Aspirated"

TRANSDAPT ENGINE DRESS UP KIT -- Includes two tall valve covers, push-in breather, grommets, timing chain cover, timing tab, dipstick, and tube.

Fits the following 1967-1974 GMC P35/P3500 Van submodels:

• 1970-1974: Base; 8 Cyl 5.7L;
• 1968-1969: Base; 8 Cyl 5.0L;

• 1967-1967: Base; 8 Cyl 4.6L;

Fits 1 more submodels. (Show all) Show less info

DNJ ENGINE CYLINDER HEAD GASKET SET -- Designed to meet or exceed OE specifications; Manufactured with associates who hold an ISO9002 or QS9000 certificate that is achieved only by meeting the highest of manufacturing standards; With 12-month or 12,000-mile DNJ limited warranty.

Fits the following 1967-1974 GMC P35/P3500 Van submodels:

• 1970-1974: Base; 8 Cyl 5.7L;
• 1968-1973: Base; 8 Cyl 5.0L;

• 1967-1967: Base; 8 Cyl 4.6L; "CARB"

Fits 1 more submodels. (Show all) Show less info

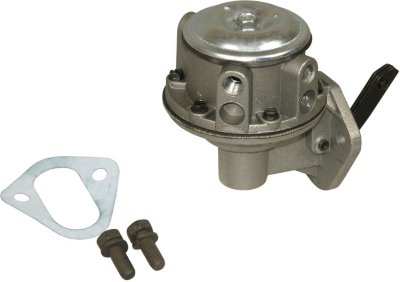

AIRTEX FUEL PUMP, NEW -- For GAS applications; Mechanical; Precision built to meet or exceed OE specifications; Its construction features the latest in technology and OE design philosophy.

Fits the following 1966-1966 GMC P35/P3500 Van submodels:

• 1966-1966: Base; 6 Cyl 4.1L;

AC DELCO FUEL PUMP, NEW -- Mechanical; Engineered to provide outstanding fuel-delivery, quick engine starts, and continuous fuel supply; Manufactured in ISO-9001 and QS-9000 registered facilities for product's reliability; Replaces OE number 6471180.

Fits the following 1974-1974 GMC P35/P3500 Van submodels:

• 1974-1974: Base; 8 Cyl 5.7L;
